Bruker Automated X-Ray Fluorescence Measurement System XMS (XMS)

    Bruker Automated X-Ray Fluorescence Measurement System XMS


    Quote Required Quote Required



    This product has been discontinued.


    • NEW Product
    • Product Codes:
      XMS
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    The XMS is a durable, versatile sensor designed for automated XRF analysis, ideal for in-line quality checks and various industrial uses. Weighing less than 2 kg, its rugged design makes it highly portable and resistant to shocks, vibration, humidity, and dust. It also features an XML-based API, enabling easy integration with coding languages like Python, C, and VB.

    The XMS is built to deliver automated XRF measurement in challenging industrial environments. Its detector is shielded by a graphene-based protective window for durability, maintaining high performance. With the optional helium purge nozzle, the XMS can detect elements down to Sodium, surpassing other automated XRF systems.

    The portable XMS is easy to move between production lines or take on-site. Its compact design allows it to be positioned close to samples in tight spaces, like rock core sample boxes or packaged goods.

    Features

    • The XMS can be easily mounted on industrial motors or robotic arms
    • Automatically switch between 5 filters, each optimized for different energy ranges and materials
    • Choose between an 8, 5 or 3 mm collimator for the optimal spot size for your application
    • 20 mm2 SDD with CMOS amplifier and graphene-based window for light element detection
    • Patented DetectorShield™ for long term performance and minimal service
    • Powerful X-ray source with Rhodium target
    • High speed pulse processing electronics for maximum count rates
    • Helium flush nozzle for low-energy element detection down to Na
    • Splash and dust resistant

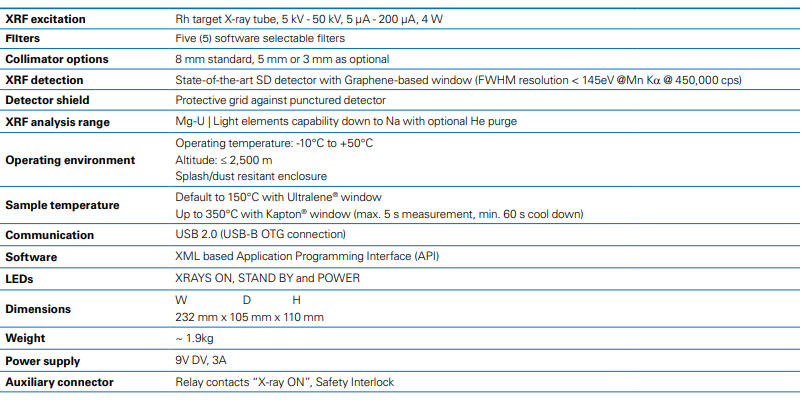

    Specs

    Additional Info
