Waygate Krautkramer Wear Resistant Contact Phased Array Probes (Wear-Resistant-Contact-Probes)

    Waygate Krautkramer Wear Resistant Contact Phased Array Probes


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      Wear-Resistant-Contact-Probes
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Wear-resistant direct contact phased array probes offer quicker, more precise, and thorough inspections in areas where traditional straight beam probes with wedges have traditionally been used, such as examining billets, welds, and forgings. Moreover, these probes replace standard phased array setups employing delay lines. Their compact design enables their use in spaces with restricted access.

    Features

    • Straight beam array contact probe of the B F and MB F probes
    • No wedges or delay lines needed
    • Permanent, abrasion–resistant wear plate
    • Best match to metals
    • Higher gain reserve than protective face models
    • Ergonomic low profile B F/MB F housing as known from conventional probes for access to tight spaces
    • Sector-scan of ± 35° for 2 MHz and ± 25° for 4 MHz version (B F) / ± 45° for 2 MHz for 4 MHz (MB F)
    • Near surface flaw detection
    • Usable as standard phased array straight beam probe

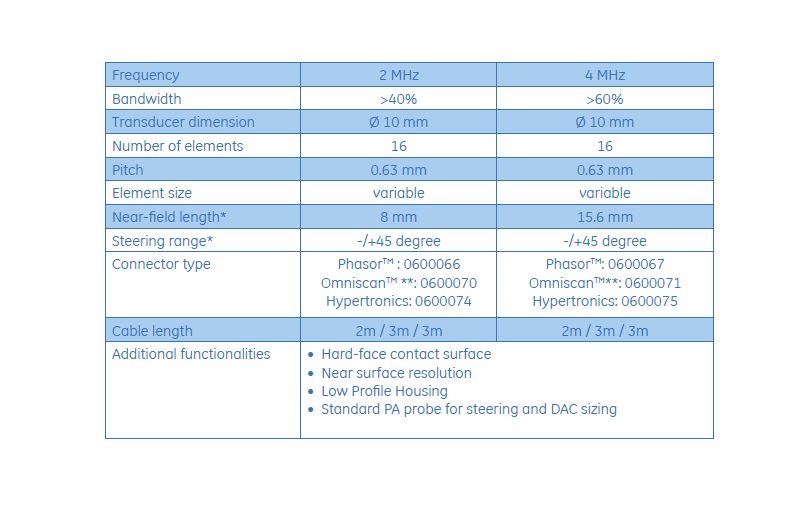

    Specs

    Additional Info
