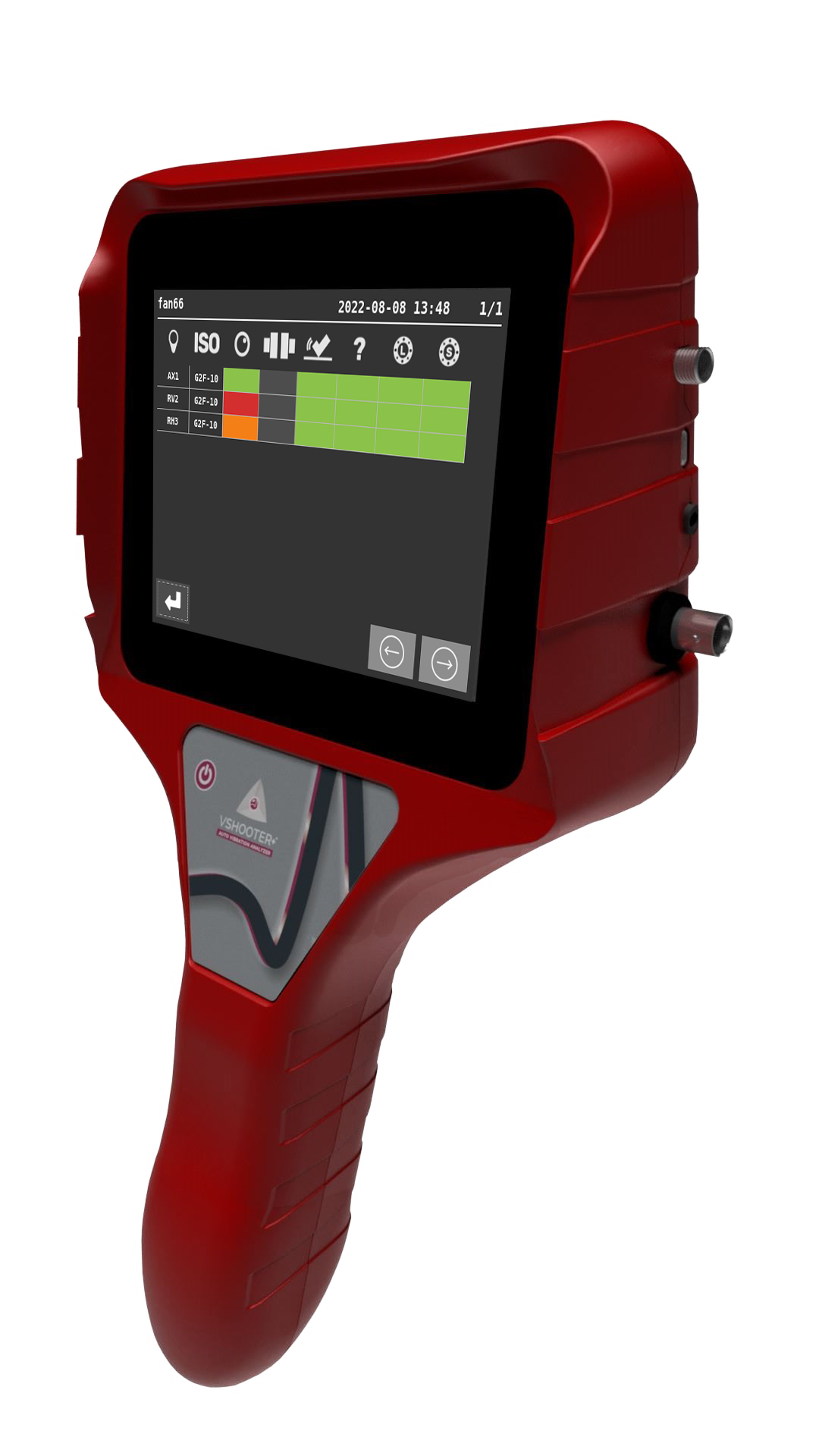

Synergys VSHOOTER+ IR Embedded Thermal Camera

SKU: VSHOOTER-PLUS
$5,487.90

Purchase Synergys VSHOOTER+ IR Embedded Thermal Camera

Synergys VSHOOTER+ IR Embedded Thermal Camera

SKU: VSHOOTER-PLUS

$5,487.90
In Stock
Quantity Price
1 + $5,487.90
This product has been discontinued.

Description

The new unique Auto Vibration Analyzer VSHOOTER+ is able to easily and quickly analyze rotating machine like an electrical motor or a pump or a fan or a bearing housing or a spindle.

Comparing to the former VSHOOTER model, the new vibrometer engineered by SYNERGYS TECHNOLOGIES has now got :
– Large 5.7” touch screen
– Infrared thermal camera LEPTON FLIR 160X120px
– Overall Improvement of the soft, more intuitve
– New embeded software BALISHOOTER to automatically focus on UNBALANCE or MISALIGNMENT severity vibration problems

The big adavantage of this vibrometer is its special dedicated MCP (Machine Condition Picture) firmware, VSHOOTER+ automatically diagnoses the machine excessive vibration causes like the Unbalance, the Misalignment, the Looseness, the Bearing lubrication, Etc.
The MCP result is given around the machine picture (embedded visiblecamera) with an Easy-to-Understand summary table with all vibration problems and color indications.
VSHOOTER+ measures vibration Trending Overall values (ISO RMSBearing-T°), FFT spectrums values and Time Signal values.

You can store all the measurement data in the memory to download to PC to create your own reports.
Additional Info
Package Includes

Synergy's VSHOOTER+ IR Embedded Thermal Camera (Package Includes):

  • 1X VSHOOTER+ DEVICE
  • 1X UNIVERSAL POWER CHARGER 230 VAC 50 HZ/60 HZ > 12 VDC/1.5 A
  • 1X USB CABLE FOR PC CONNECTION
  • 1X ICP ACCELEROMETER 100 mV/g WITH STRAIGHT
  • 1X ICP ACCELEROMETER 100 mV/g WI mV/g WITH STRAIGHT BNC CABLE
  • 1X STRONG FLAT MAGNET FOR ACCELEROMETER
  • 1X STRONG PLASTIC ABS CASE
  • 1X 1X USER MANUAL (PDF FILE) ON USB MEMORY STICK
  • CALIBRATION & MANUFACTURER
Specifications
  • IP54
  • Temperature of use: -5°C to +40°C for device, max +120°C for sensor on machine
  • Battery: Typically 6 hours of use, recharged in 5 hours with provided charger
  • Cϵ Certified (With EMC following standards EN61000 / 6-2 / 6-4 / 4-2)
  • Charger: 230V-50/60 Hz > 12VDC/1.5A (VSHOOTER+ power consumption is about 9W)
  • Size (case): 426 x 290 x 159 mm (16.77 x 11.41 x 6.26 inch), Weight (with case): 4.5 kg
  • 2 years warranty for VSHOOTER+® device, 1 year warranty for its accessories (internal battery, charger and vibration sensor)

Features

The new unique Auto Vibration Analyzer VSHOOTER+ is able to easily and quickly analyze rotating machine like an electrical motor or a pump or a fan or a bearing housing or a spindle. The new vibrometer engineered by SYNERGYS TECHNOLOGIES has now got :

  • Large 5.7” touch screen Infrared thermal camera LEPTON FLIR 160X120px
  • Overall Improvement of the soft, more intuitve
  • New embeded software BALISHOOTER to automatically focus on UNBALANCE or MISALIGNMENT severity vibration problems
  • Adavantage of this vibrometer is its special dedicated MCP (Machine Condition Picture) firmware, VSHOOTER+ automatically diagnoses the machine excessive vibration causes like the Unbalance, the Misalignment, the Looseness, the Bearing lubrication
  • The MCP result is given around the machine picture (embedded visible camera) with an Easy-to-Understand summary table with all vibration problems and color indications.
  • VSHOOTER+ measures vibration Trending Overall values (ISO RMSBearing-T°), FFT spectrums values and Time Signal values.
  • You can store all the measurement data in the memory to download to PC to create your own reports.
Videos

Product details

Tech support available

Product code
VSHOOTER-PLUS
Product weight
5.00
