FlawTech Corrosion, Erosion, Lamination Thickness Plates (UT-THICKNESS-PLATES)

    FlawTech Corrosion, Erosion, Lamination Thickness Plates
    Starting at:

    $1,275.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      CEL-4C1
    • Tech Support Available
    • Product Weight: 6.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

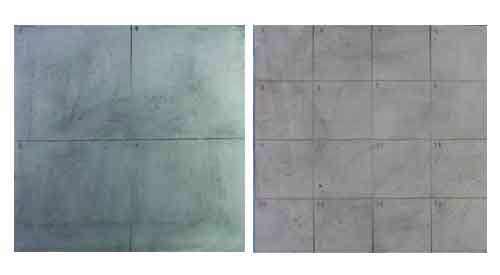

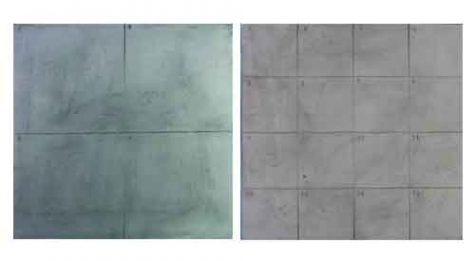

    FlawTech's corrosion, erosion, pitting and lamination plates come in a variety of specifications to further aid you in your NDT testing process. You have the option of choosing a four section plate or a sixteen section plate in either Carbon Steel or Stainless Steel.

    Documentation Package Includes:
    • Certificate of Conformance
    • "As Built" CAD Certificates
    • Measuring and Test Equipment Certificates

    Features

    • The through wall depths of the indications will vary but the target depths will range from ¼, ½ & ¾ T.
    • The recorded depth of the corrosion indications will be based on the deepest spot within the field of corrosion.
    • The side of the carbon plate hosting the indications will be painted with a “Rust-Oleum” type paint to assist in preventing additional corrosion.
    • The host side of the plate will be covered with a “removable” cover plate.

    Specs

    Material:

    1018 Carbon Steel or 304 Stainless Steel

    Number of Quadrants:

    		 4 16

    Quadrant Identification:

    		  Plates will be divided into 4 quadrants with machined scribe lines with each quadrant identified Alpha/Numerically on plate.  Plates will be divided into 16 sections with machined scribe lines with each quadrant identified Alpha/Numerically on plate.

    Corrosion, Erosion & Laminations:

    		  The opposing side (host side) of the plate will host 2 randomly placed simulated corrosion, erosion and/or laminations.  The opposing side (host side) of the plate will host 4 randomly placed simulated corrosion, erosion and/or laminations.

    Available Dimensions:

    0.25” Thick  x 8” x 8″
    0.375" Thick x 8" x 8"
    0.5" Thick x 8" x 8" 0.75"
    Thick x 8" x 8"
    1.0" Thick x 8" x 8"
