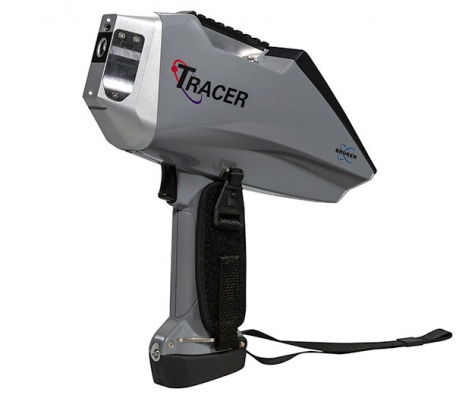

The Bruker TRACER 5g XRF is a handheld, portable spectrometer ideal for elemental analysis in the field and in laboratory-like settings. Specifically designed for methods development, research and complex material analysis, the TRACER 5g detects elements from Fluorine to Uranium (with a He atmosphere) and analyzes elements from Sodium to Uranium.
Latest Technology for Advanced Materials Applications
Geoscience users have long seen the TRACER 5g as unique in its ability to provide elemental information in analyzing ores, cores, drill cuttings, soil and sediment.
The TRACER 5g features a 1 μm graphene detector window, an integrated touchscreen display, 50kV X-ray tube, SharpBeam front end geometry (for maximizing count rate and light elemental sensitivity), large area silicon drift detector (SDD) with CUBE technology (maximizes count rate and light element sensitivity), selectable spot sizes (including 3 and 8 mm collimators) and is capable of operating in air, helium or vacuum environments.
The TRACER 5g offers an internal VGA CCD camera with adjustable lighting with the ability to store up to 5 photos per assay.
The TRACER 5g offers Bluetooth, Wi-Fi and USB connectivity. Data can be stored on a thumb drive and transferred to PC as needed.
Each TRACER 5g ships with ARTAX software for advanced XRF spectral analysis and also allows for the handling of large data sets and remote control of the instrument. EasyCal software is also included for off-line user-created single phase/beam empirical calibrations.
SharpBeam™ front end geometry
Large area SDD
User-selected spot size
Easy Access™ Rail mount
User controlled current and voltage
High capacity Li-Ion battery
|TRACER 5i||TRACER 5g|
|Detector||Proprietary 20mm2 silicon drift detector with < 140 eV @ 250,000 cps Mn Kα;resolution for optimum light element analysis.|
|Detector window||8 μm Beryllium||1 μm Graphene|
|Dimensions||27.3 cm x 9.4 cm x 29.5 cm (10.75 in x 3.7 in x 11.6 in) L x W x H|
|Weight||1.9 kg (4.1 lbs) with battery or 1.6 kg (3.6 lbs) without battery.|
|Power||Li-Ion battery and charger; AC adapter.|
|Excitation source||Rhodium (Rh) thin window X-ray tube; X-ray generator 6-50 kV with 4.5-195 uA, maximum 4 Watt output.Operator adjustable current and voltage for optimum excitation.|
|Collimation||User changeable collimator; 3 mm and 8 mm collimators supplied.|
|Filters|| Operator controlled, motorized 5 position primary beam filter wheel.
Manual insertion filter/secondary target slot for factory or user made filters.
|Geometry||Features patented SharpBeam™ beam path for best performance at low power.|
|Beam path||Capable of selectable beam path of vacuum, helium or air to detect elements as light as Fluorine (F) to as heavy as uranium (U).|
|Internal camera||Internal VGA CMOS camera with ability to store up to 5 photos per assay.|
|Interactive touchscreen||High performance and contrast daylight visible TFT LCD 9.4 cm (3.7”) color touchscreen display.|
|Convenience||TrueTouch trigger switch, relaxed ambidextrous hand grip strap and EasyAccess rail mount for accessories.|
|Control software||Full control OS on analyzer and on PC software.|
|Analysis software||Control of all excitation parameters and live spectra displayed on analyzer.
Live spectra and qualitative, semi-quantitative and quantitative analysis on Windows® 7 or 10 PC.
|Data storage & data transfer||Direct storage on Thumb Drive. Data transfer to PC via USB or Wi-Fi. Bluetooth connectivity for accessories.|
|System safety||Password protection; Sample proximity sensor; Low count rate (backscatter) shutoff|
|Languages||Chinese, Chinese simplified, Dutch, English, French, French Canadian, German, Indonesian, Italian, Japanese, Korean, Polish, PortugueseBR, Russian, SpanishMEX, SpanishSPN, Thai, Turkish|
|Operating environment||-10°C to +50°C (+14°F to 122°F); IP54 dust and splash resistant; Altitude: ≤ 2,500 m (8,200 ft)|
|Certification||CE, FCC part 15|
