CorDEX ToughPIX 2303XP (TP2303XP)

    CorDEX ToughPIX 2303XP




    DISCONTINUED

    This product has been discontinued.


    • Product Codes:
      TP2303XP
    • Original Code:
      TP2303XP
    • Tech Support Available
    • Product Weight: 11.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description



    REPLACED WITH TOUGH PIXII

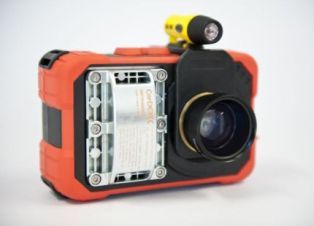

    The ToughPIX 2303XP explosionproof digital camera is designed and certified with the professional inspector in mind. ToughPIX 2303XP is ATEX certified Ex I/II 2/M2 G /Ex d I Mb/EX d IIC T4 Gb, for use in hazardous areas both above and below ground

    ToughPIX 2303XP uses a rugged, IP54 design and brings together the ability to capture still images at a resolution of up to 10 megapixels along with onboard movie capture capability in one easy to use device.

    For close up and wide area photography, the ToughPIX 2303XP is supplied complete with interchangeable lens kit, including two lenses as standard; macro and wide angle.

    Also as standard, the ToughPIX 2303XP is supplied with two illumination options for the low light working conditions and incorporates red-eye reduction for still image and movie capture. The high intensity strobe flash enables wide area illumination for still shots whilst the removable low intensity LED lamp is designed for close up shots and movie capture.

    The ToughPIX 2303XP is supplied with:

    • ToughPIX 2303XP CSA Certified Digital Camera
    • Removable/rechargeable battery pack
    • Charging station
    • Mains charger
    • USB communication wand
    • Battery removal tool
    • Documentation CD
    • Hard transport case

    Note: Only CorDEX Instruments batteries and fuses may be used with ToughPIX 2303XP.

    Features

    The ultimate tool for visual image acquisition within potentially explosive vapour atmospheres, both above and below ground:

    • Certified for Petrochemical and mining, explosive areas - Ex I/II 2/M2 G /Ex d I Mb/EX d IIC T4 Gb
    • Hard wearing, corrosion resistant casing with armoured 2.4"e; LCD screen
    • Large easy access controls
    • High intensity strobe flash and attachable LED Lamp for low light conditions
    • 5 megapixel sensor array
    • Removable/Rechargeable battery
    • Movie capture capability (AVI)
