Synergys TABSHOOTER Acoustic Leak Detection Camera
SKU:
TABSHOOTER
$0.00
New product
FREE Ground Shipping
FREE Calibration
FREE Accessories
Intrinsically Safe
Intrinsically Safe
Product details
Tech support available
- Product code
- TABSHOOTER
- Original Code
- Original Code 2
- NSN
- Product weight
- 0.00
Description
The TABSHOOTER Leak Detection Camera is a versatile inspection system designed to quickly locate and visualize compressed air and gas leaks, vacuum leaks, steam leaks, mechanical faults, and high-voltage partial discharges.
Using advanced acoustic imaging technology, the TABSHOOTER allows operators to both see and hear ultrasonic sound sources through the built-in speaker or headphones. It can detect ultrasound generated by leaks, friction, impacts, mechanical issues, and electrical partial discharges, while PRPD (Phase-Resolved Partial Discharge) analysis helps identify and evaluate high-voltage electrical faults. The system can also detect lower-frequency sounds beginning at approximately 2 kHz.
For expanded condition monitoring capabilities, an optional **256 × 192 pixel infrared thermal camera** provides temperature measurements from **-20°C to +550°C**, allowing users to identify abnormal hot spots alongside acoustic sources.
By combining acoustic imaging, ultrasonic detection, partial discharge analysis, and optional thermal imaging in a single platform, the TABSHOOTER is well suited for preventive and predictive maintenance, energy-loss reduction, compressed air system inspections, and electrical equipment monitoring.
Photos, videos, and measurement data can be stored directly in the device and transferred to a PC for documentation and inspection report creation.
What is an acoustic camera?
An acoustic camera is an advanced imaging device that identifies and locates sound sources using an array of microphones. These microphones capture sound signals simultaneously, and specialized processing converts the data into a visual representation showing where the sound originates.
Acoustic imaging has a wide range of industrial applications, including detecting mechanical faults, gas and vacuum leaks, and high-voltage electrical issues. For example, analyzing sound patterns emitted by an operating transformer can help identify internal electrical discharges, loose components, and other potential problems, supporting preventive maintenance and troubleshooting.
Additional Info
Package Includes

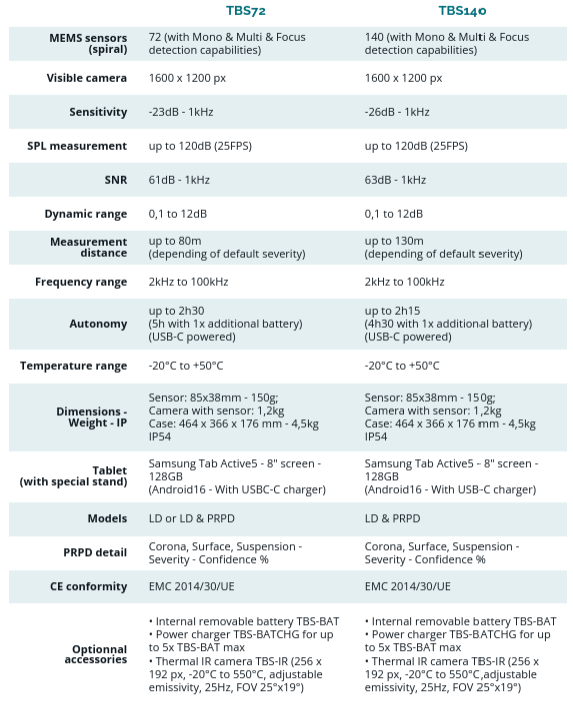

Specifications
Features
Advanced Acoustic Imaging: Uses an array of microphones to locate and visualize sound sources in real time.
Leak Detection: Identifies leaks in compressed air, industrial gases, vacuum, and steam systems.
Electrical Fault Detection: Helps locate high-voltage issues, including partial discharges and electrical arcing.
Mechanical Fault Identification: Detects abnormal sounds that may indicate loose components or developing equipment problems.
Real-Time Visual Display: Converts sound signals into color-coded images to pinpoint the source of a problem.
Noise Filtering: Adjustable frequency settings help isolate target sounds and minimize unwanted background noise.
Long-Range Detection: Enables users to locate sound sources from a safe distance, depending on the equipment and conditions.
Preventive Maintenance: Helps identify potential issues before they lead to equipment failure or costly downtime.
Energy Cost Reduction: Locates compressed air and gas leaks to help reduce energy waste and operating expenses.
Inspection Documentation: Supports photo and video capture for reporting, analysis, and maintenance records.
Improved Inspection Efficiency: Allows technicians to quickly identify problem areas without extensive manual testing.
