Echo Ultrasonics SuperSoniX Broad Temperature NDT Couplant (SUPERSONIX)

    Echo Ultrasonics SuperSoniX Broad Temperature NDT Couplant
    Starting at:

    $87.60 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      SS-4CTN
    • Tech Support Available
    • Product Weight: 5.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

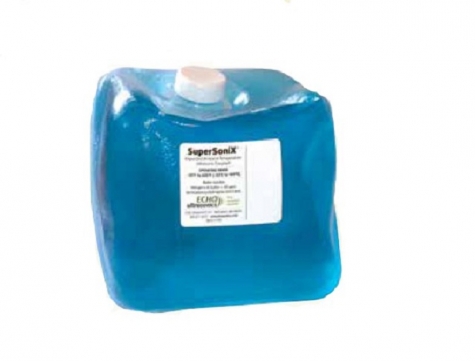

    SuperSoniX™ from Echo Ultrasonics is a high-performance ultrasonic couplant used in flaw inspections and thickness gaging and is suitable for most materials. The SuperSoniX™ is a medium flowable gel with a broad operating range and a slow evaporation rate.

    Features

    • Gel couplant, not stringy or sticky
    • Gel viscosity remains in place for overhead and vertical surfaces
    • Broad operating range for a water-based couplant
    • Slow drying
    • Improved stability against corrosion salts
    • Water-soluble
    • Safety: Environmental and operator friendly
    • No formaldehydes, nitrates, nitrites or glycol ethers
    • Contains glycerin. Not for aluminum aircraft inspections

    Specs

    • Operating Range: -10°F to 220°F (-23°C to 104°C)
    • Viscosity: Medium flowable gel
    • Halogens and Sulfur: Less than 50 ppm
    • pH: 8.0 nominal at 20°C

    Compliance:

    • ASTM F519
    • ASME Boiler and Pressure Vessel Code (T-533)
    • NAVSHIPS 250-1500
    • Nuclear Grade (< 50 ppm Halogens and Sulfur)
