Mitutoyo Surftest SJ-220 Portable Surface Roughness Tester
SKU:
SJ-220
$3,410.00
New product
FREE Ground Shipping
FREE Calibration
FREE Accessories
Intrinsically Safe
Intrinsically Safe
Product details
Tech support available
- Product codes
- 178-741-13, 178-743-13, 178-744-13, 178-745-13, 178-746-13, 178-741-13-ISO, 178-742-13-ISO, 178-743-13-ISO, 178-744-13-ISO, 178-745-13-ISO, 178-746-13-ISO, 178-742-13
- Original Code
- Original Code 2
- NSN
- Product weight
- 0.00
Description

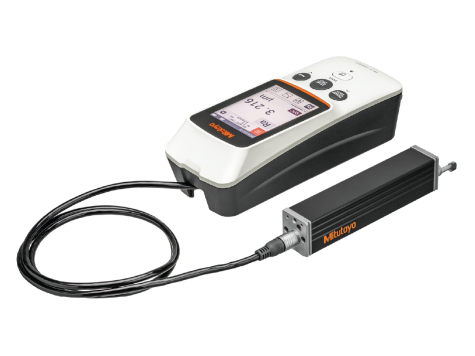

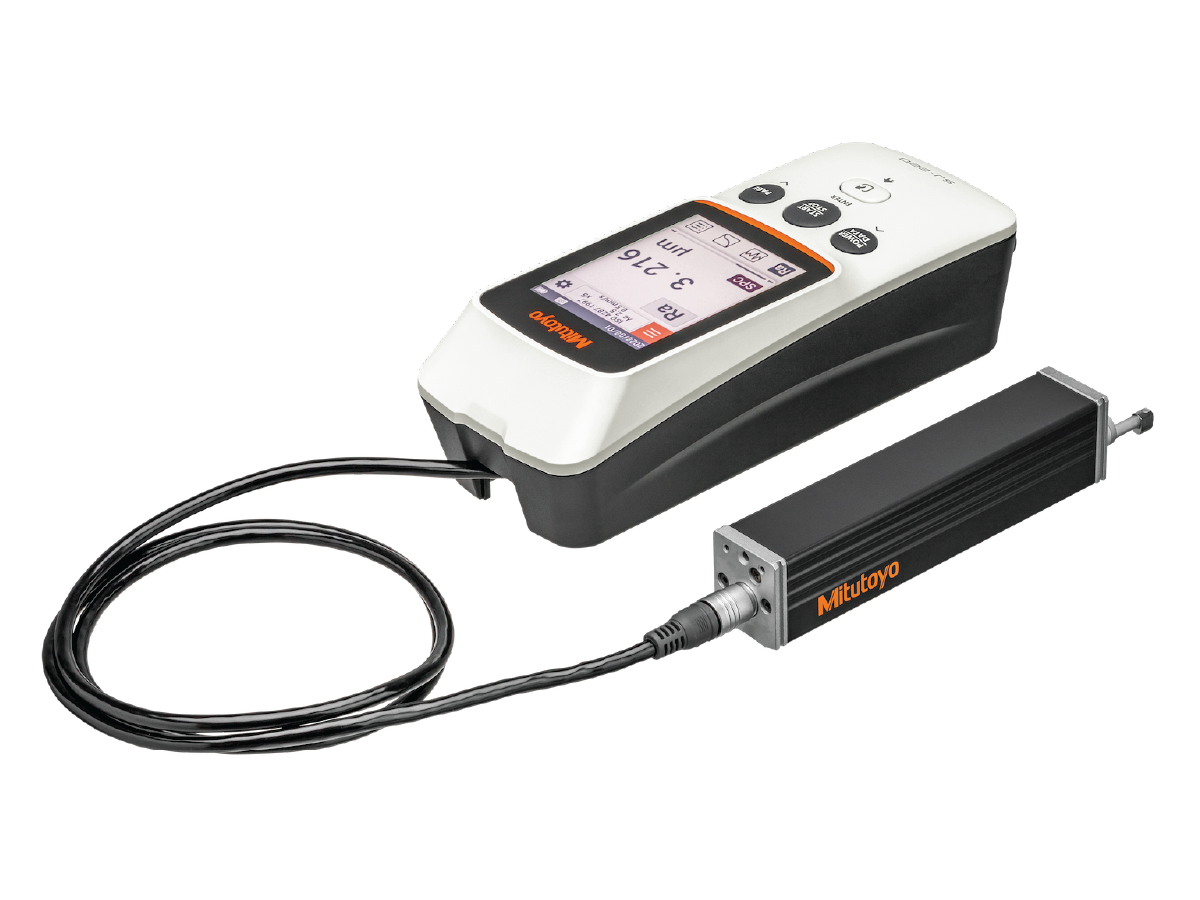

The Mitutoyo SJ-220 is a compact, high-performance surface roughness tester crafted for easy and precise on-site measurements. It features a user-friendly touchscreen, wireless connectivity, and an extended battery life that supports up to 1,000 measurements per charge. The SJ-220 offers precision and efficiency without the need for bulky equipment, utilizing advanced technology to ensure accurate roughness evaluation in line with the latest ISO 21920 standards, making it an essential tool for quality control in any manufacturing environment.
Additional Info
Related Accessories
Mitutoyo Nosepiece for flat surface
Mitutoyo Nosepiece for cylindrical surface
Mitutoyo Support foot set (pair)
Mitutoyo V-Type Adapter
Mitutoyo Point-Contact Adapter
Mitutoyo Extension rod (50mm)
Mitutoyo Vertical positioning adapter
Mitutoyo Height gage adapter (mm)
Mitutoyo Magnetic stand adapter (ø8mm stem)
Mitutoyo Roughness Specimen W
Mitutoyo Extension Cable (1 m)
Mitutoyo Magnetic Stand Adapter
Mitutoyo Footswitch
Mitutoyo RS-232C Communication Cable
Mitutoyo USB Input Tool Direct (2 m) USB-ITN-SF
Mitutoyo Digimatic Mini Processor DP-1VA LOGGER
Mitutoyo Connection Cable (1m)
Connection Cable (2m)
Mitutoyo Memory Card
Package Includes

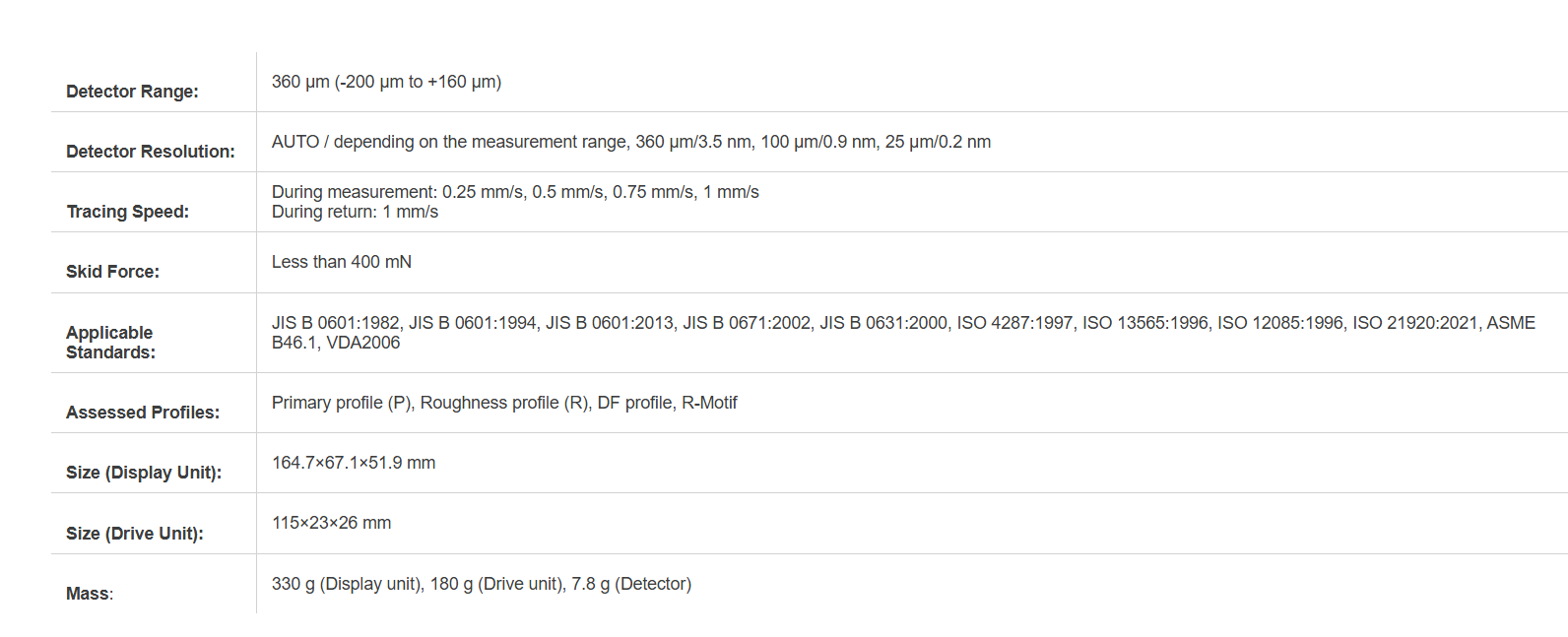

Specifications
Features
- Compatible with new standard ISO 21920.
- Built-in 2.8-inch color graphic, back-lit display provides excellent readability, improved visibility and is easy-to-use in dark environments.
- LCD display mode can be freely switched between portrait and landscape as well as left-hand or right –hand direction
- Even if you are wearing gloves and unable to use the touch screen, you can still operate the SJ-220 using the physical buttons.
- On a full charge, it can be used to perform measurements approximately 1000 times.
- Optional U-WAVE-TIB transmitter allows for wireless displaying of measurement results, setting measurement conditions, and bidirectional communication.
- Dedicated “SJ-APP” for increased efficiency of measurement work
- The display interface supports 25 interchangeable languages
