Bruker S1 Titan 500S Handheld XRF Analyzer (S1TITAN500S)

    Bruker S1 Titan 500S Handheld XRF Analyzer

    Quote Required Quote Required


    • NEW Product
    • Product Code:
    • Tech Support Available
    • Product Weight: 10.00

       Hours:   8:00 am to 4:30 pm CST

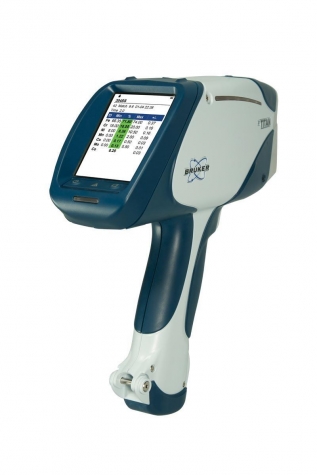

    The Bruker Titan S1 500S is a mid-tier handheld XRF analyzer, designed to quickly and accurately display the elemental analysis of target samples from titanium to uranium. It also clocks in as one of the lightest, most powerful XRF analyzers currently available - weighing just under 1.5 kg with battery. Whether you are testing large machined parts, scrap metal or other products, the ergonomic pistol grip and trigger design allow for all-day "point-and-shoot" analyzing of materials.

    Durable with the Latest Technology

    The S1 Titan 500S features an integrated touch-screen color display, 50 kV X-ray tube operated at 15-40kV and max 1.5W output, SharpBeam technology, Silicon Drift Detector (SDD) with elemental range Ti-U, and an extremely tough housing that is sealed against humid and dusty environments (rated IP54).


    The analyzer also comes with Bluetooth, Wi-Fi and USB connectivity. Data can be stored internally on the instrument or a USB flash drive.

    Designed for Maritime Sulfur

    The S1 Titan 500S is specifically designed for measurement of sulfur in maritime fuels (add on).


    Each S1 Titan 500S ships with Bruker's Instrument Toolbox, the PC software suite for controlling and communicating with the analyzer. The unit can be remotely controlled via Wi-Fi or USB so you can communicate with the instrument and manipulate data. Included are a report generator, spectrum viewer, grade table editor and the ability to install software & calibration updates.

    Spot Measurement Size

    The spot measurement size 5 mm.


    The S1 Titan 500S can come with optional Bluetooth wireless accessories including an external GPS receiver providing GPS coordinates of the assay, a portable, rugged thermal printer, and a barcode reader.

    Add-On Packages

    The S1 Titan 500S features add-on calibration packages for measuring the following types of materials:

    • Maritime Sulfur - MARPOL measurement of Sulfur in maritime Fuels 0.01-1% wt.% S.
    • The unit also can come with 100 pre-made Bruker XRF sample cups in a roll with ETNOM™ 3μm foil; XRF safety foil for the Desktop or Benchtop stand.

    Custom calibrations available upon request, including calibration modifications and customer grade libraries.


    • Available calibrations include: alloy, gold, and precious metals, bulk material (E‐scrap and catalytic converters) and customer specific
    • Superior SDD detector technology
    • Superior count rates and resolution (compared to previous generation SiPIN instruments)
    • Faster than previous generations
    • Lower detection limits
    • Easy analysis of light elements, such as magnesium, aluminum, and silicon, without the need for vacuum or helium atmosphere (S1 TITAN 800 and 600 only)



    S1 TITAN Specifications Excitation Detector  Elemental Range  Spot Size Camera
    Model 800

    4 filters

    CUBE™ SDD Mg - U 8, 5 or 3mm Included
    Model 600 15-50kV
    4 filters
    CUBE™ SDD Mg - U 5mm Optional
    Model 500 40kV
    Fixed filter
    SDD Ti - U 5mm Not Available
    Model 300 15-50kV
    4 filters
    SiPIN Cl - U 5mm Optional
    Model 200 40kV
    Fixed filter
    SiPIN Ti - U 5mm  Not Available

    Additional Info

    Package Includes


    • Bruker S1 Titan 500S Handheld XRF Analyzer
    • Two (2) high performance Li-Ion batteries with smart charger
    • USB stick for data storage and easy reporting
    • Bruker Instrument Toolbox software package for reporting, qualitative spectral analysis, live spectrum functionality, flexible grade table, user field editor and remote instrument control
    • 5 spare PROLENE™ protective windows
    • Extensive manuals and safety video
    • Waterproof and pressure equilibrated PELICAN™ transport case
    • 2 year standard warranty (Extendable to 5 year total Protection)
