$1,050.00

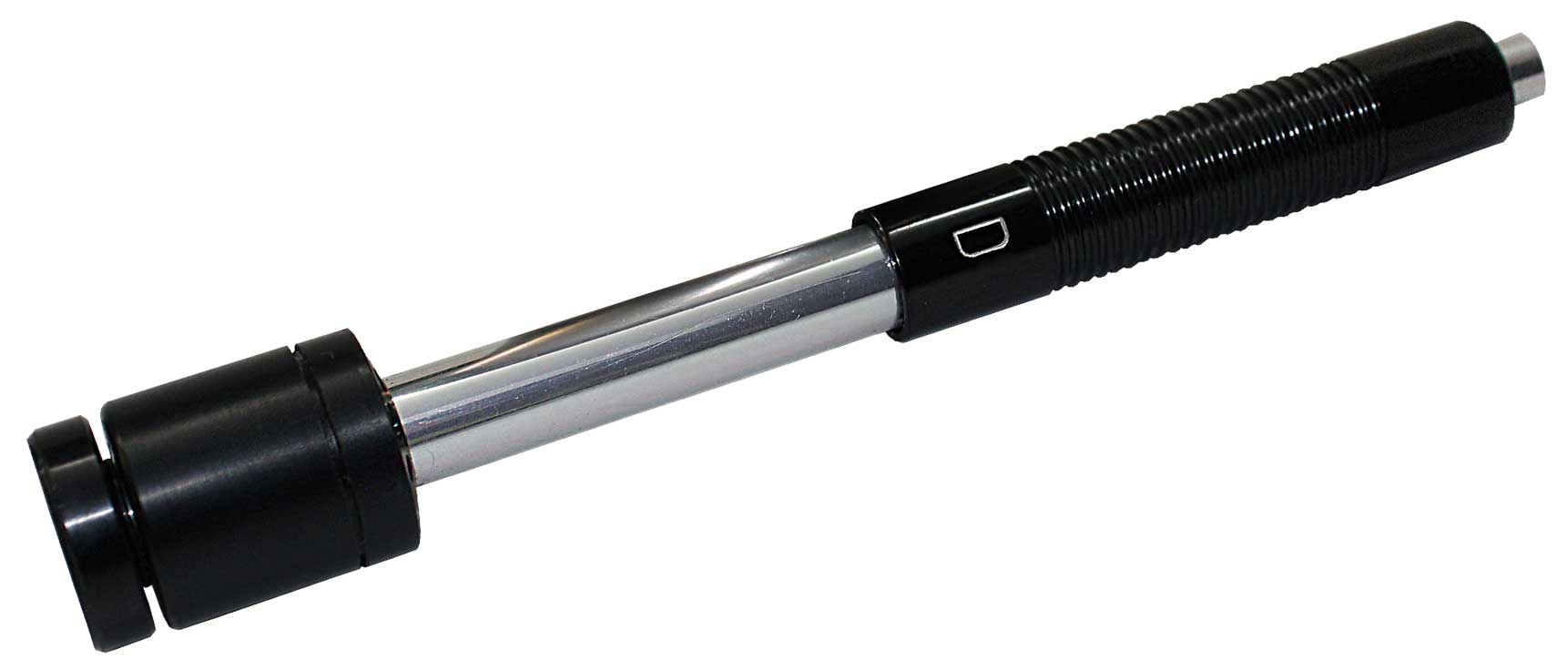

The Berg D Probe and Cable are for use with the Berg RT-2H Rebound Portable Hardness Tester. Cable length is 2 meters.
| Model | RT-D300A |
| Impact Device | D |
| Hardness Valueof Std. Leeb Hardness Block | 760±30HLD 530±40HLD |
| Error of Displayed Value | ±6 HLD ±10 HLD |
| Repeatability of Displayed Value | 6 HLD 10 HLD |
| Impacting Energy | 11 Mj |
| Test Tip | Hardness: 1600 HV Material: Tungsten Carbide Diameter: 3 mm |
| Impact Device | Diameter: 20 mm Length: 86(147)/ 75 mm Weight: 50 g |
| Max Workpiece Hardness | 940HV |
| Mean roughness of workpiece surface of the Ra | 1.6 μm |
| Min. weight of sample | >5kg 2～5kg 0.05～2kg |
| Min. thickness of sample coupling | 5 mm |
| Min.layer thickness for surface harden | ≥ 0.8 mm |
