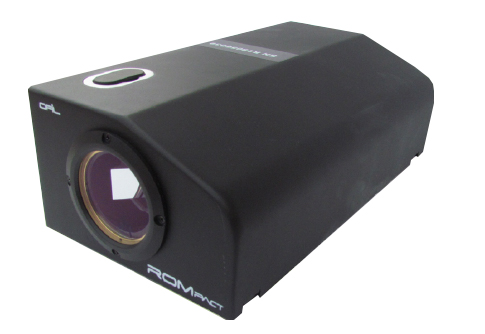

The Ofil ROMpact's patented DayCor® technology guarantees you a high sensitivity to UV corona discharge and allows the camera to operate in full daylight, delivering real-time exact locations of corona PD and electrical faults. The camera also blocks noise and false signals (Registered Patent EP1112459B1). The ROMpact's high sensitivity to UV radiation and auto focus mode allow the camera to capture corona discharge at a distance without any smearing during motion, even at high speeds. Video output is set to NTSC PAL standards. The camera can be easily mounted on a standard 1/4" thread tripod mount or existing gimbals, and its rigid stabilizing plate keeps the system attached securely while the payload stabilization system has full control.
The ROMpact systems are controlled remotely by a set of communication commands of RS232 standard. There is also an option for wireless control. An unlimited operation time means there are no worries of overheating during long inspections. The ROMpact saves and transfers information about eletrical faults and occurrences of corona partial discharge as they are detected. The corona color can also be changed in order to accommodate different backgrounds or personal preference.
ULTRA VIOLET (UV) - OPTICAL PROPERTIES | |
Sunlight Rejection | Absolute – at all sunlight and all weather conditions, target can be inspected with the sun in the field of view |
Minimum Discharge Detection | 1pC @ 15 meters (RWE certified: IEC 60270:2000) Tested & certified |
Minimum RIV Detection | 7.7dBμV (RIV) @1MHz @10m (RWE Tested & certified: NEMA107-1987) |
Minimum UV Sensitivity | 1.9 x 10-18 watt/cm² |
Variable UV Gain | 10 Steps, to enhance detectivity |
Field of View H x V | 8° x 6° |
Detector Life Span | No degradation |
Focus Range | 1.5m|4.9ft – Infinity |
Corona Color | Can be selected to accommodate for various scenes or match individual preferences |
Spectral Range | 240-280nm |
VISIBLE - OPTICAL CONFIGURATION | |
Auto Focus Mode | Yes |
UV/Visible Overlay Accuracy | Deviation < 1 miliradian |
Minimum Visible Light Sensitivity | 0.1Lux |
Zoom | 10 optical x 12 digital (120 optical x digital) |
Quick Zoom | Yes |
CONTROLS AND OPERATION | |
Video output | NTSC | PAL standards |
Operation Time | Unlimited. No overheating |
PHYSICAL CHARACTERISTICS & POWER SOURCE | |
Storage and Operation Temp | -200C up to +550C | -4ºF up to +131ºF |
Weight | 1.4kg | 3.08 lb |
Dimensions L x W x H | L245 x W125 x H101 mm (L9.65” x W4.92” x H3.9”) |
Nominal Power Consumption | 7.5÷30 VDC, 14 Watts |
Vibration and Shock | ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64 |
INTERFACE | |
Power Supply | Inbound |
Video Transmission | Outbound |
Control Functions | Inbound/Outbound |
Communication | RS-232 (baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, Stop bit: 1/2 selectable) |
MEDIA CAPTURE & STORAGE | |
Video Format | AVI |
Digital Storage | Removable SD card |
ACCESSORIES | |
CoronaWise - Corona Management Software; Inspection Guide |
