(Rental) Foerster SIGMATEST 2.070 Eddy Current Conductivity Meter (R-SIGMATEST-2.070)

Close Window

Quote Required Quote Required

Package Information

NEW Product
Product Codes:
R-SIGMATEST-2.070
Original Code:
SIGMATEST-2.070

Tech Support Available
Product Weight: 10.00

Government Buyers?

Have a Question?

HAVE A QUESTION?

Call: 1-847-577-3980

Send an Email

Hours: 8:00 am to 4:30 pm CST

Description

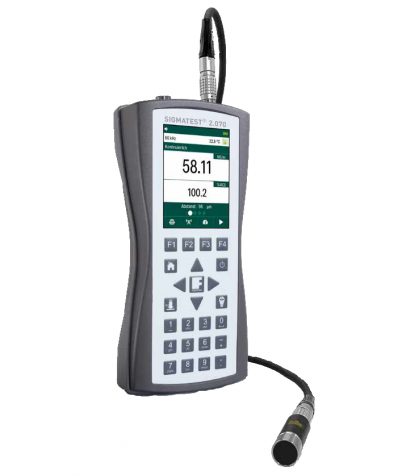

RENTAL: The Foerster SIGMATEST 2.070 is a handheld portable eddy current testing device that measures the electrical conductivity of non-ferromagnetic material based on the complex impedance of the unit's measuring probe.

The Foerster SIGMATEST 2.070 determines material properties both physical and technical. Normal uses include ensuring the quality of products being manufactured, testing combination materials, and sorting metal, alloys, and scrap. The maintenance of aircrafts, determining heat damage, and in-process controls during production and processing in the metallurgy industry also utilize the unit.

The Foerster SIGMATEST 2.070 has five different excitation frequencies and remarkably high measuring accuracy. The unit keeps a high level of accuracy even at a high frequency of 960kHz, which allows the measurements on very thin pieces with accuracy.

The device also automatically standardizes the measured value of the electrical conductivity to 20°C because of integrated temperature compensation. The quality of the measurements conforms to Boeing (BAC561) and Airbus standards.

The Foerster SIGMATEST 2.070 offers two operating modes: Touch or Continuous. The continuous mode can be used to scan surfaces and show the measurement result in a chart and the touch can be used to measure a single value. The recording function can be used to save all measurements.

Features

Five measuring frequencies 60, 120, 240, 480, 960 kHz The high frequency of 960 kHz allows accurate electrical conductivity measurement on very thin pieces
50 measurements per second
Easy operation in either touch or continous mode
Internal and external temperature compensation
Measurement possible up to 0.75 mm distance from the test item
Measurement range from 0.5 to 65 MS/m (1-112 % IACS)
Remote control by an external PC is possible via Ethernet standard RJ45. The interface allows complete control over the instrument and an integration in automated systems
SD-card slot for saving nearly an unlimited amount of test data
Probe characteristics are directly saved on the probe and automatically read by the device
Multilanguage operating system
Robust device design for operation on site

Videos

Specs

Measurement range:	0.5 to 65 MS/m (1 to 112 % IACS)
Absolute accuracy	+/-0.7 % of measured value @60kHz, 14mm probe
Resolution:	+/-0.1 % of measured value
Automatic distance compensation	Up to 750 μm (0.03 inch)
Operating frequencies:	60, 120, 240, 480, 960 kHz
LCD display	480 x 640 pixel
Power Supply	5V DC / 3000 mA
Operating time per set of batteries	4 h
Operating voltage	Power supply and battery charges adaptable to the operating voltage in any country
Interfaces	10 pin LEMO connector, SD card slot, Ethernet RJ45, 100 Mbit/s
Temperature range	0°C to +40°C (32 ° to 104°F)
Humidity	5% to 85%
Dimension	211 x 102 x 40mm
Weight	0.62kg
Standards	DIN 50994, ASTM E1004, DIN EN 2001-1
