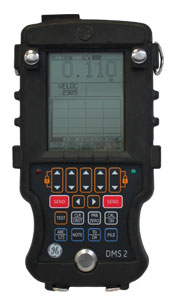

DMS 2 Ultrasonic Thickness Gauge
The DMS 2 is a revolutionary A-Scan Digital Thickness Gauge/Data Recorder incorporating beneficial performance features, ease of use, and Krautkramer's patented (US Pat. 6,035,717) TopCOAT Technology and Auto-V (Auto Velocity) measurement modes.. All pertinent inspection data is displayed to the user on a large high resolution 1/4 VGA display designed to use direct sunlight to enhance the contrast.
The DMS 2 is built to last in a custom-molded, gasket sealed high-impact resistant housing. The robust rubber field case provides added protection for withstanding use in harsh industrial environments.
Specifications:
Operating Principle
Ultrasonic pulse/echo
Measurement Modes
Dual-element, Dual-element Dual-multi,
Single-element initial pulse-to-1st, single element multiple echo (peak and flank
modes), B-scan (optional TopCOAT & Auto-V modes)
B-Scan
Cross-sectional view quickly identifies thinned or laminated areas. Timed 3.5-21
second
Probe Zero Adjustment
Automatic microprocessor controlled
V-Path Correction
Automatic microprocessor controlled
Measuring Range
.008" to 25.00" (.2 to 635 mm); depends on material, probe, surface, condition, and temperature
Digital Displayed Resolution
.001 or .01 inches; .01 or .1 mm
Reading Update Rate
4 or 8 Hz; 32 Hz in Min & B–Scan Modes
Gain
Automatic or adjustable in 1 dB steps
Receiver Bandwidth
500 KHz to 15 MHz
Material Velocity Range
39,400 to 393, 662 in/sec.; 1000 to9999 m/sec.
Power Supply
4 ea. Standard, AA size, alkaline or nicad rechargeable batteries
Fast Battery Charger
External, 5 hour maximum charge time
Battery Life (operating time)
40 hours continuous use at 4 Hz update and backlight, Min Cap, and B–Scan off
Instrument Shut-off
Manual or automatic after 1 to 15 minutes of non-use
I/O Port
Bidirectional RS232 selectable: baud rate (maximum 115,200), printer, direct reports
Multilingual Operation
English, German, French, Italian, and Spanish
Operating Temperature Range
+10° to +120°F (–10° to + 50°C)
Size
10.1" H x 5.1" W x 1.2" D (256 mm x 129mm x 30 mm)
Weight
1.6 lbs. (725 g) with batteries
Hazardous Area Operation
Safe operation as defined by MIL-STD-810E, Method 511.3, Procedure 1.
Warranty
A full two-year warranty on parts and labor
