Berg Rental - DM5E Ultrasonic Thickness Gauge

Rental Package includes:

• DM5E Thickness Gauge
• FH2E-D Fingertip Probe OR DM401-GP General Purpose Probes
  (other probes available upon request, must specify, may increase package cost)
• Carbon Steel Calibration Test Block (Optional)
• Couplant
• Operating Manual
• Carry Case
• ISO 17025 Certificate of Calibration

Please contact Berg Engineering at 1-847-577-3980 or Request Quote above for package rental cost and availability.

Simple Operation

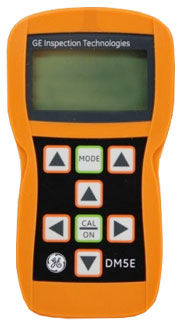

All versions of the DM5E have the same user-friendly operator keypad interface. This has a central Mode key, a calibration/on/off key, two function arrow keys to activate and set functional control and four arrow keys for adjusting parameter values and for navigating through the intuitive single level menu. The keypad allows access to all calibration, set-up and measurement display modes of the instrument. With the DL version, a file display mode allows users to create and store thickness reading s in files. All calibration is menu-driven and the operator is guided through every step. There is a built-in calibration reminder, which can be set to remind the user to calibrate after a specified number of measurements or after a given time period

 High Performance Probes

A new set of ultrasonic probes has been developed for the DM5E family to provide the instruments with optimized performance, even at very high temperatures. The DA5xx series includes a 5 MHz standard probe for general purpose applications, a 2MHz version, for high penetration as well as a 7.5MHz fingertip probe to beused for “thin” materials. A newly developed 5MHz high temperature probe offers an operating range from -10°C up to +204°C(continuously).

 Measurement Through Coating

Both the DM5E and the DM5E DL offer Dual Multi Measurement. Virtually all components and structures subjected to thickness measurement will have some kind of protective coating. Such coatings, including paint, contribute significant error to thickness measurements of underlying metal walls when using conventional methods. In addition, the removal of coatings, and their subsequent reapplication, involves considerable cost and time. With the field proven Dual Multi feature there is no need to remove any protective coating. It is only necessary to select Dual Multi mode, place the probe in position and take the measurement.

 Measurement Displays

All versions of the DM5E offer a range of measurement displays. These include:

• Normal where the thickness value appears as large digits in the centre of the display
• Mini Scan This is a minimum thickness scan and allows the user to run the probe over the wall surface. After the evaluation period, the minimum material thickness measured is displayed.
• Maxi Scan. This is a maximum thickness scan and is exactly the same as a Mini Scan apart from the fact that the maximum thickness measured is displayed.
• DIFF/RR%. This scan compares the measured thickness with a user-specified nominal thickness. The dimensional difference between the two values is displayed, as is the percentage difference.
• B-Scan This displays a graphic representation of a B-scan showing minimum thickness values. The graph is derived by measuring and recording at 1 point per second.

Measurement reliability

Although thickness measurements are considered as a simple inspection task studies have shown that there is a risk for wrong thickness measurements. Due to the complexity of certain thickness gages wrong instrument settings could result in faulty results.

With the new DM5E we offer the field approved, simple intuitive CL5 user interface and in addition to that the password protected Advanced Configuration Menu allows you to lock important settings and functions.

This means: no more faulty reading as a result of wrong calibration, or unintended changes to the instrument configuration.

Upgradeability

Fast, reliable measurement and reporting is in demand, enabling you to act fast on corrosion issues to ensure uptime and long life of your equipment and operations. Especially in the current economic conditions, investments have to be evaluated very carefully - the DM5E series offers flexible solutions, that are easily upgradeable to the changing situations and the related functionality needed.

Buy the instrument configuration needed today with the built-in ability to add additional features to the instrument when needed without having to send it back to us.

In case inspection needs are changing the DM5E series can be upgraded in the field by adding datalogger functionality
