Dakota PZX Series Precision Thickness Gauges (PZX-SERIES)

    Dakota PZX Series Precision Thickness Gauges
    Starting at:

    $2,250.00 1. Quote Required



    This product has been discontinued.


    • NEW Product
    • Product Codes:

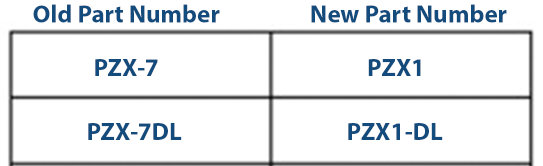

      PZX1
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

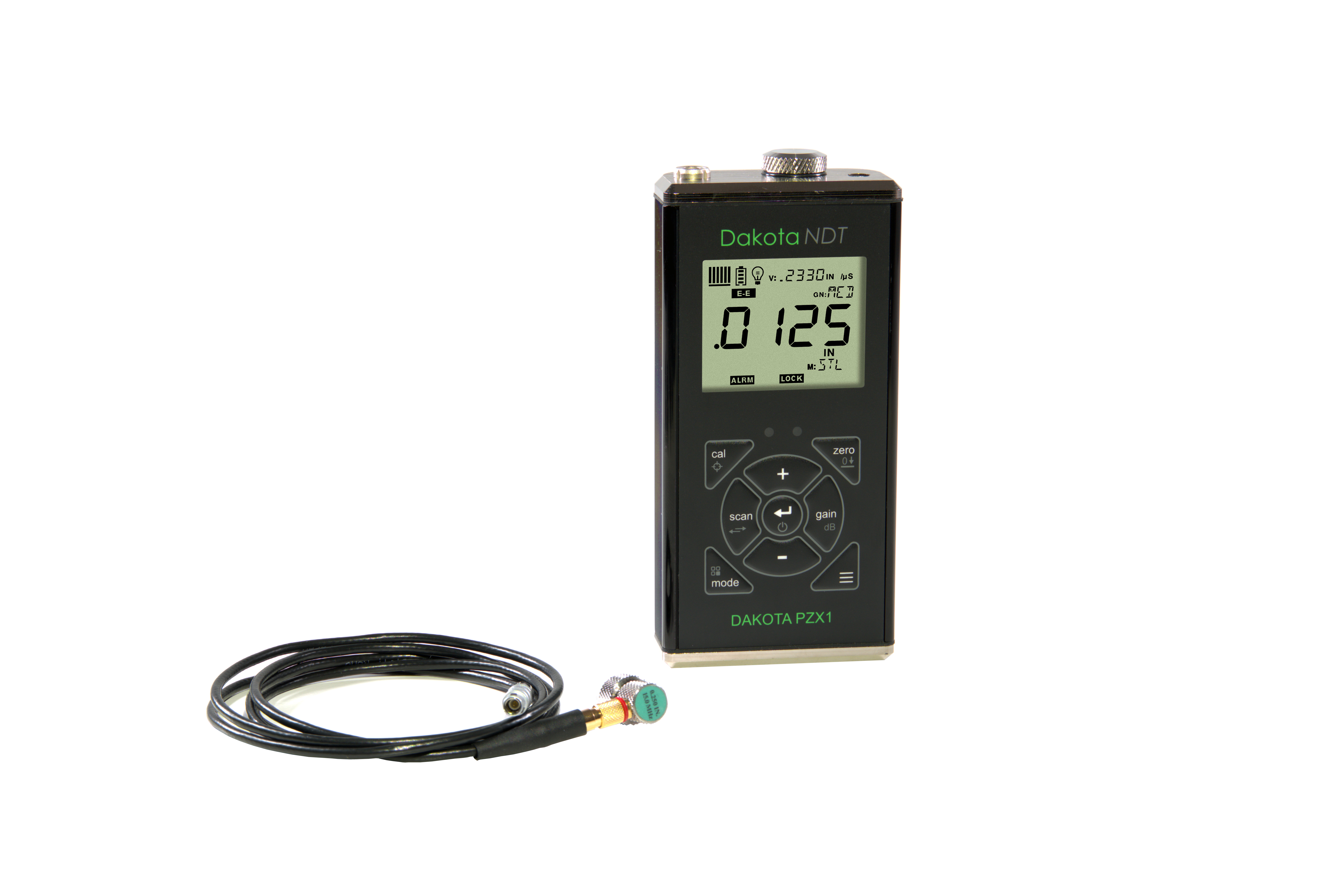

    The PZX1 series gauges are advanced digital display instruments designed to provide precise and accurate measurements across a variety of applications. These single element precision gauges offer multiple measurement modes, ensuring they can meet the diverse needs of different industrial environments. They are compatible with both high and low frequency transducers and come with a variety of diameter options, allowing for flexibility in measurement types.

    Connectivity is a key feature of the PZX1 series, with all models equipped with USB-C ports that support fast data transfer. Some models also include built-in data storage, enabling direct recording of measurements on the device. Additionally, they support serial communication over USB-C using the CDC class, facilitating seamless integration with external systems. For even greater versatility, optional RS232 and Bluetooth modules are available, which allow the gauges to connect with data collectors and custom applications.

    The PZX1 series is built with durability in mind, as evidenced by the 5-year limited warranty provided by the manufacturer. This warranty underscores their confidence in the long-term reliability and performance of these gauges.

    Features

    • High Speed Scan Mode
    • Differential Mode
    • Limit alarm mode
    • Powered by: 120MHz FPGA timing
    • Measure Modes: Pulse-Echo, Echo-Echo, Interface-Echo, and Plastics
    • Optional serial RS232 or bluetooth module
    • Automatic time dependent gain (TDG) with manual override
    • 100 volt spike pulser

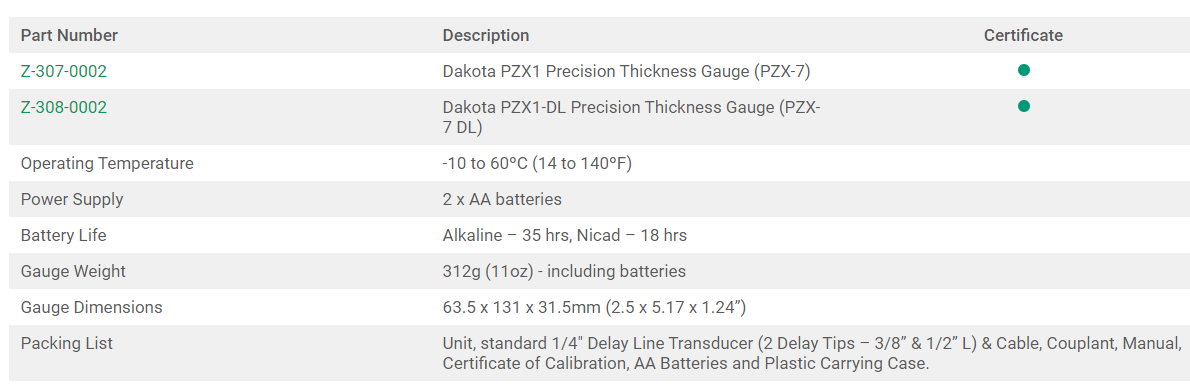

    Specs

    Package Includes
