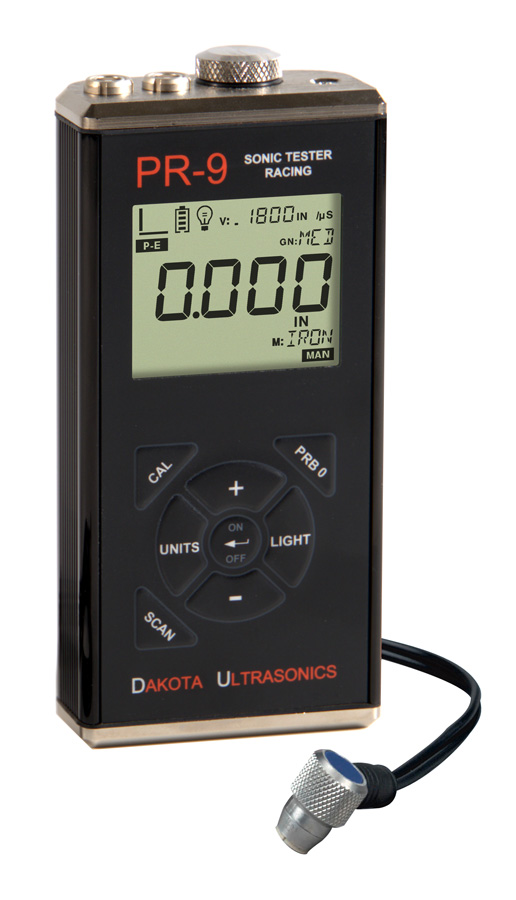

Dakota PR-9 Dual Element Racing Thickness Gauge

SKU: PR-9
$1,325.00

Discontinued
Dakota PR-9 Dual Element Racing Thickness Gauge

Thumbnail Filmstrip of Dakota PR-9 Dual Element Racing Thickness Gauge Images

    New product

    Product details

    Tech support available

    Product code
    PR-9
    Original Code
    Z-309-0001
    Product weight
    0.00
    Purchase Dakota PR-9 Dual Element Racing Thickness Gauge

    Dakota PR-9 Dual Element Racing Thickness Gauge

    SKU: PR-9

    $1,325.00
    This product has been discontinued.

    Description


    The PR-9 Sonic Tester is specifically designed for the racing industry and is commonly used to measure the thickness of various components such as cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. One notable feature is its dual-element probe, which can detect hidden corrosion or deterioration on the blind surface in the water jacket area before any boring process.

    The high-speed scan capability allows the device to take 100 measurements per second, saving time when scanning an entire cylinder. To find the minimum thickness, users can drag the probe from the cylinder's bottom to the deck area at a specific clock position, switch off the scan, and precisely locate the minimum thickness.

    The PR-9 offers three material calibration options (single point, two-point, and target velocity) for enhanced accuracy. It also comes with cylinder wall mapping software for manually generating reports. Additionally, the product is backed by a 5-year limited warranty, reflecting our confidence in its quality.
    Additional Info

    Brochure

    Package Includes
    • PR-9 Racing Thickness Gauge and Probe
    • 4 oz. Bottle of Coupling Fluid
    • 2 AA Batteries
    • NIST Calibration Certificate
    • Operating Instruction Manual
    • Carrying Case
    Specifications
    Range Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.
    Resolution .001 inches / 0.01mm
    Velocity Range 0.0120 to .7300 in/μs / 305 to 18,542 m/sec
    Units English & Metric (inch or mm)
    Transducer Types Dual Element (1 to 10 MHz)
    Power Source Two 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells.
    Battery Life Typically operates for 45 hours on alkaline and 23 hours on NiCad. Low battery indicator on display.
    Auto shut-off after 5 minutes of inactivity.
    Display Multi-function 7 segment 4.5 digit liquid crystal display with 0.500 in digit height
    Keyboard Sealed membrane that is resistant to both water and petroleum products.
    Case Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Operating Temperature -22 to 167F (-30 to 75C)
    Weigth, net 11 ounces
    Dimensions 2.5 W x 5.17 H x 1.24 D inches / 63.5 x 131.3 x 31.5 mm
    Warranty 5 year limited (90 days on probes)
    Certification CE Approved, Factory calibration traceable to national standards
    Features
    • Special-purpose probes are offered for a variety of applications
    • High Speed Scan Mode displays the lowest measurement found during a scan
    • Resolution of 0.001 inch (0.01 mm)
    • CE Certified
