Dakota PMX Series Precision Thickness Gauges
Starting at:

$3,275.00

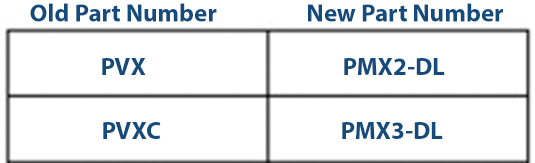

Click Here to view the product replaced by this product.

This product has been discontinued.


  • NEW Product
  • Product Codes:
    PMX2-DL
  • Tech Support Available
  • Product Weight: 0.00

HAVE A QUESTION?
   Hours:   8:00 am to 4:30 pm CST

Description

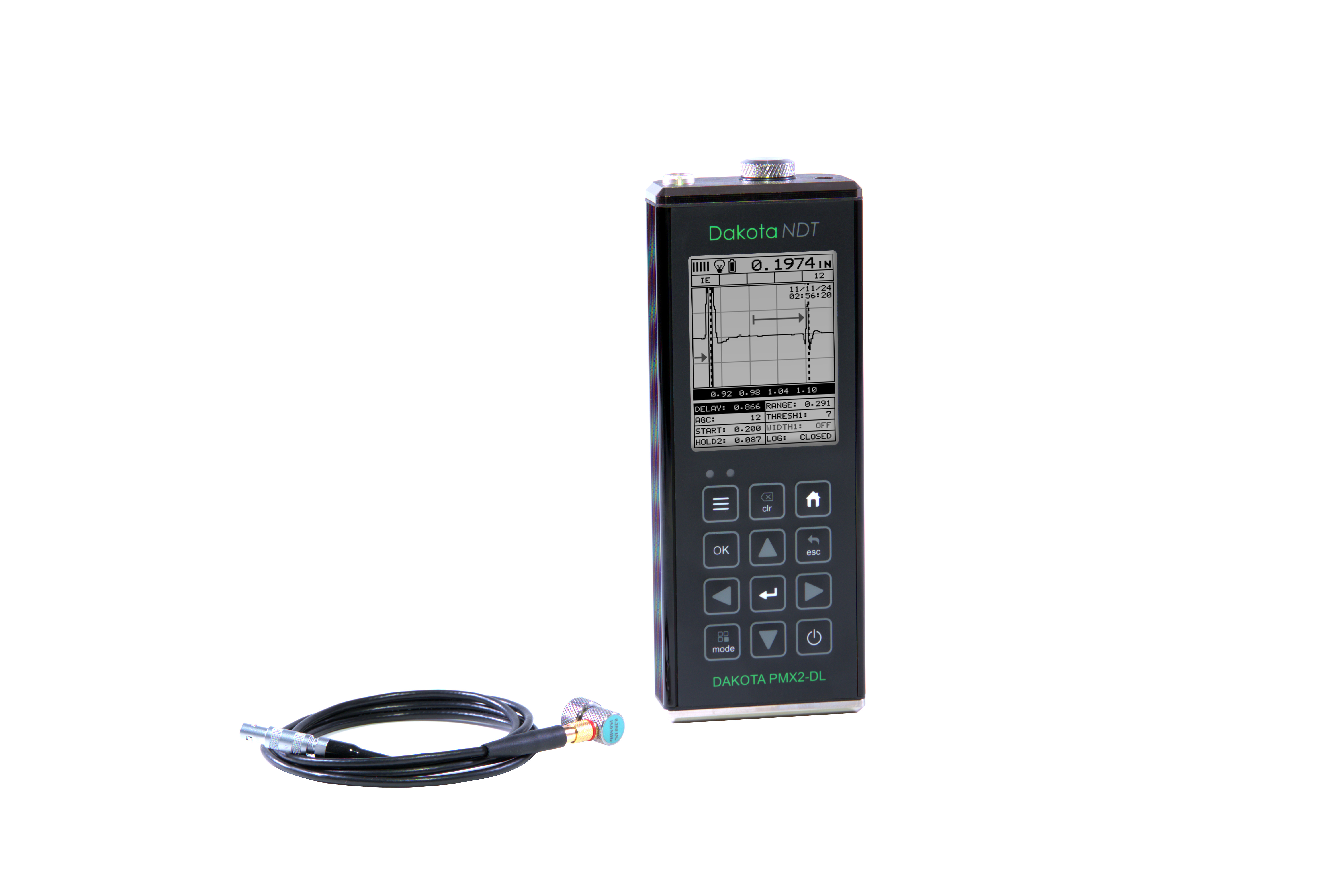

The Dakota PMX Precision Thickness Gauge is a versatile and advanced instrument designed to display thickness values using both A and B-Scan displays, allowing for highly accurate assessments across a diverse range of materials. With user-selectable resolution options of either 0.01mm or 0.001mm (0.001/0.0001"), it offers precise measurements tailored to specific needs. The auto find feature enhances usability by automatically locating the detection points and adjusting the display settings to clearly present the waveform. Additionally, the high-speed scan feature significantly accelerates the inspection process, capturing up to 250 measurements per second. This functionality enables users to remove the transducer from the test material and view the minimum measurement recorded during the scan, ensuring efficient and comprehensive evaluations.

Key Features:

Accuracy

Measures thin materials with pinpoint accuracy

Flexible & easy to use, the Dakota PMX Precision Thickness Gauge is able to measure the thinnest point of the substrate with maximum precision.

Powerful

Store each measurement for further analysis

Up to 4GB of readings and waveforms can be saved into the gauge memory as each measurement is taken, which can be downloaded later into an inspection application or into DakMaster® Software for further analysis and reporting.

Intelligent

User definable limits for pass/fail indication

Limits can be set on the Dakota PMX Thickness Gauge for individual readings or for each batch with audible & visual alarms.

Customizable

Choose & customize the reading display

With a choice of display modes, the user can select the most appropriate option for their needs; Readings, Selected Statistics, Bar Graph, Run Chart & Differential Mode.

Features

  • 0.001mm high resolution
  • Range of display options: A-Scan, B-Scan, Pulse-Echo, Echo-Echo
  • Manual or AGC gain control with 110dB range, varies with mode selected
  • Automatic gain control (AGC)
  • User definable setups
  • Multiple language display
  • Visual and audible alarm with high and low limit settings for specific application tolerances
  • Multiple calibration and material selection options
  • High speed scan: 250 readings per second
  • Differential mode
  • Minimal thickness alarm

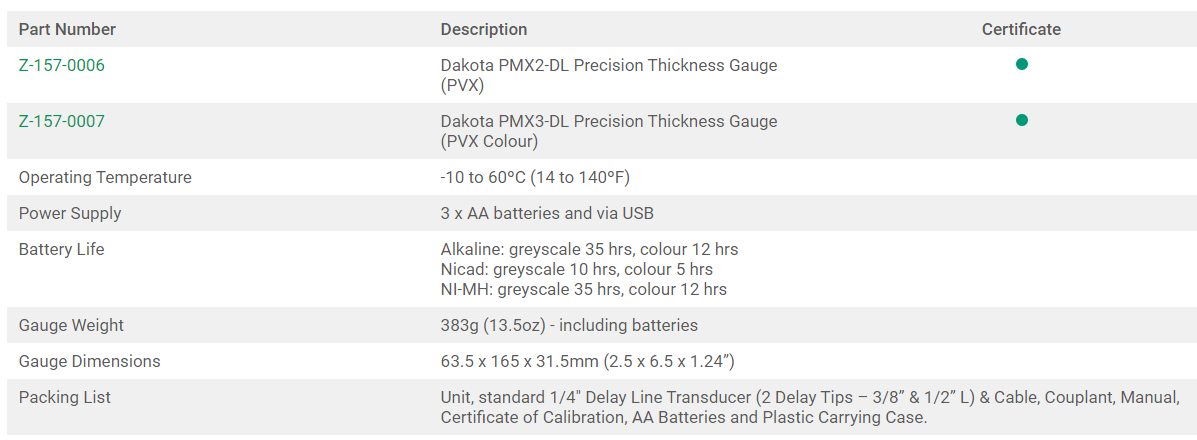

Specs

Package Includes

RELATED ACCESSORIES
