Spectroline PowerMAX™ 365 Clear Glass Filter Assembly Standard Intensity (PM-1600UV)

Close Window

DISCONTINUED

Package Information

Product Codes:
PM-1600UV
Original Code:
PM-1600UV

Tech Support Available
Product Weight: 10.00

Government Buyers?

Have a Question?

HAVE A QUESTION?

Call: 1-847-577-3980

Send an Email

Hours: 8:00 am to 4:30 pm CST

Description
Features

Description

Designed Specifically for NDT Professionals!

PowerMAX™ 365 Series flood lamps feature a panel of 16 powerful UV-A (365 nm) LEDs specially engineered for non-destructive testing applications. These versatile, stationary light sources can be installed overhead or in-line, and can be ganged together to provide an even wider coverage area.

PowerMAX™ 365 Series UV-A LED panel flood lamps are also available in two standard-intensity models that are designed for NDT inspection applications requiring limited UV-A output. Both versions address aerospace industry concerns.

Ideal for NDT inspection booths, fluorescent penetrant and magnetic particle inspection, screening of fluorescent particles, wash station inspection and many other applications requiring maximum uniformity of UV-A coverage over a large area.

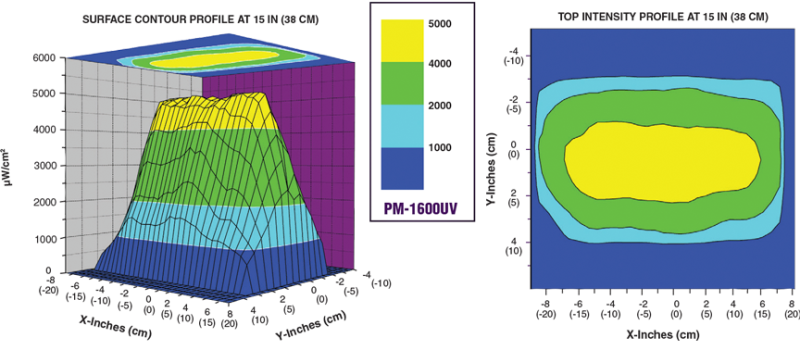

The PM-1600UV is equipped with a clear glass filter and provides a nominal steady-state UV-A intensity of 4,500 μW/cm² (maximum) at 15 inches (38 cm).

Typical wavelength output profile of PowerMAX™ 365 Series with and without black light filter.

As the wavelength of the PowerMAX™ 365 moves into the visible light range,
the black light filter significantly reduces the output of the lamp at 400 nm.

Easily Expandable!


For applications requiring extremely large coverage areas, the PowerMAX™ 365 can be quickly ganged together longitudinally (left) or back-to-back (right) using customized, easy-to-install connecting plates and brackets.

Features

Features:

Choice of two high-intensity models with a nominal steady-state UV-A intensity as high as 8,000 μW/cm² or two standard-intensity models with a maximum UV-A intensity of 4,500 μW/cm² at 15 inches (38 cm)
Large coverage area of 15 inches by 6 inches (38 cm x 15 cm), with a minimum UV-A intensity of 2,000 μW/cm²
Low visible light emission – less than 2 foot-candles (22 lux)
Easily mountable for overhead inspection or in-line applications
Built-in fans keep LEDs cool to maintain optimum light output during extended use
Meets ASTM UV-A intensity and wavelength specifications for FPI and MPI
Customizable! Multiple lamp units can be “ganged” together longitudinally or back-to-back for a larger coverage area to meet your specific inspection requirements
Both high- and standard-intensity versions available with or without black light filter
Certificate of compliance for both UV-A output and wavelength measurements is supplied with each unit
