Parker PL-10 Magnetizing Coil (PL-10-SERIES)

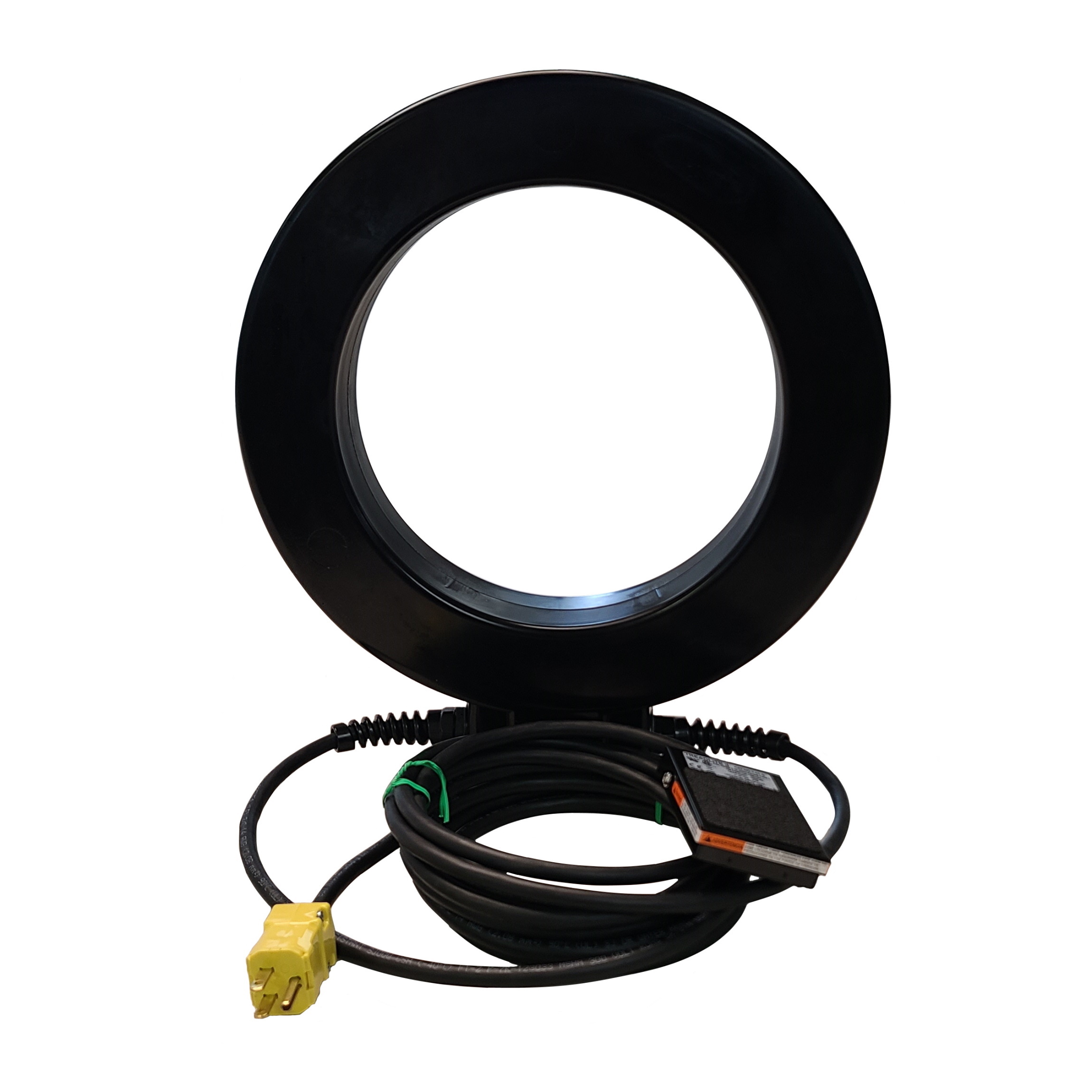

The Parker PL-10 Portable Magnetizing Coil, with a 9 7/8″ inside diameter, is designed for magnetic particle inspection of ferrous metal parts. It supports the use of both dry powder and wet fluorescent inspection media and can also be used for demagnetizing.

The coil is encased in durable black polyurethane and is available with a standard foot switch or an optional hand switch, along with a 10′ power cord. The sealed electrical connection box features a 2″ x 5″ flat base, enabling the coil to stand upright in a vertical position.

The coil is designed for a 50% duty cycle, and is equipped with thermal overload protection. The 115 VAC version operates from a standard 115 VAC, 60 Hz power source. The 230 VAC version operates from a 230VAC, 50-60 Hz power source.

230VAC model available with CE certification at an additional cost

A plastic carrying case is included.
