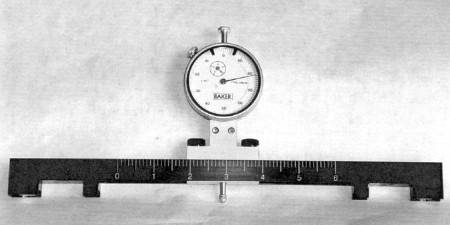

Exacto Pit Depth Gauge Analog (PG1200A)

The gauges are designed for easy use, accuracy, and repeatability. The PG1200A includes a 12" bridge to effectively span the pit to be assessed. Corrosion profiles can be plotted quickly and accurately by moving the dial indicator along the bridging bar. Notched feet prevent the bridge from rocking on a rounded surface. Ceramic magnets securely hold the gauge in place, a definite bonus when working upside-down. The left-handed scale measures increasing depth as the tip drops into the pit. A locking adjustment screw allows instant calibration to a reference surface. Thumbscrews facilitate one-handed operation.

 Pit Gauge Kits include:

• 12" bridging bar
• Extension rods up to 10"
• Protective molded insulated case
• Instruction sheet
• Analog face
• Conical contact tip
• Allen wrench
