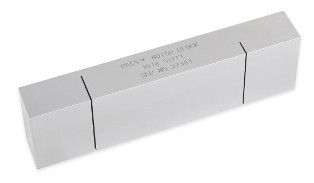

The PH Tool PA PACS™ Notch Blocks, designed jointly by PH Tool LLC and Davis NDE, are specially designed for use with Phased Array instruments used for sizing of OD and ID-connected cracks. These blocks contain four EDM slots at depths of 20, 40, 60, and 80% and a width of .031". Standard thickness is 1.000", but other sizes can be made available. Dimensions for the PACS™ Notch Blocks are 1.0" thick x 2.0" wide x 7.0" long. Materials include: 7075-T6 Aluminum, 1018 Steel, 304 Stainless Steel, and Special Alloy.
Blocks are in accordance with PH Tool Drawing No. 10210.
Material Certification is included with all blocks.
