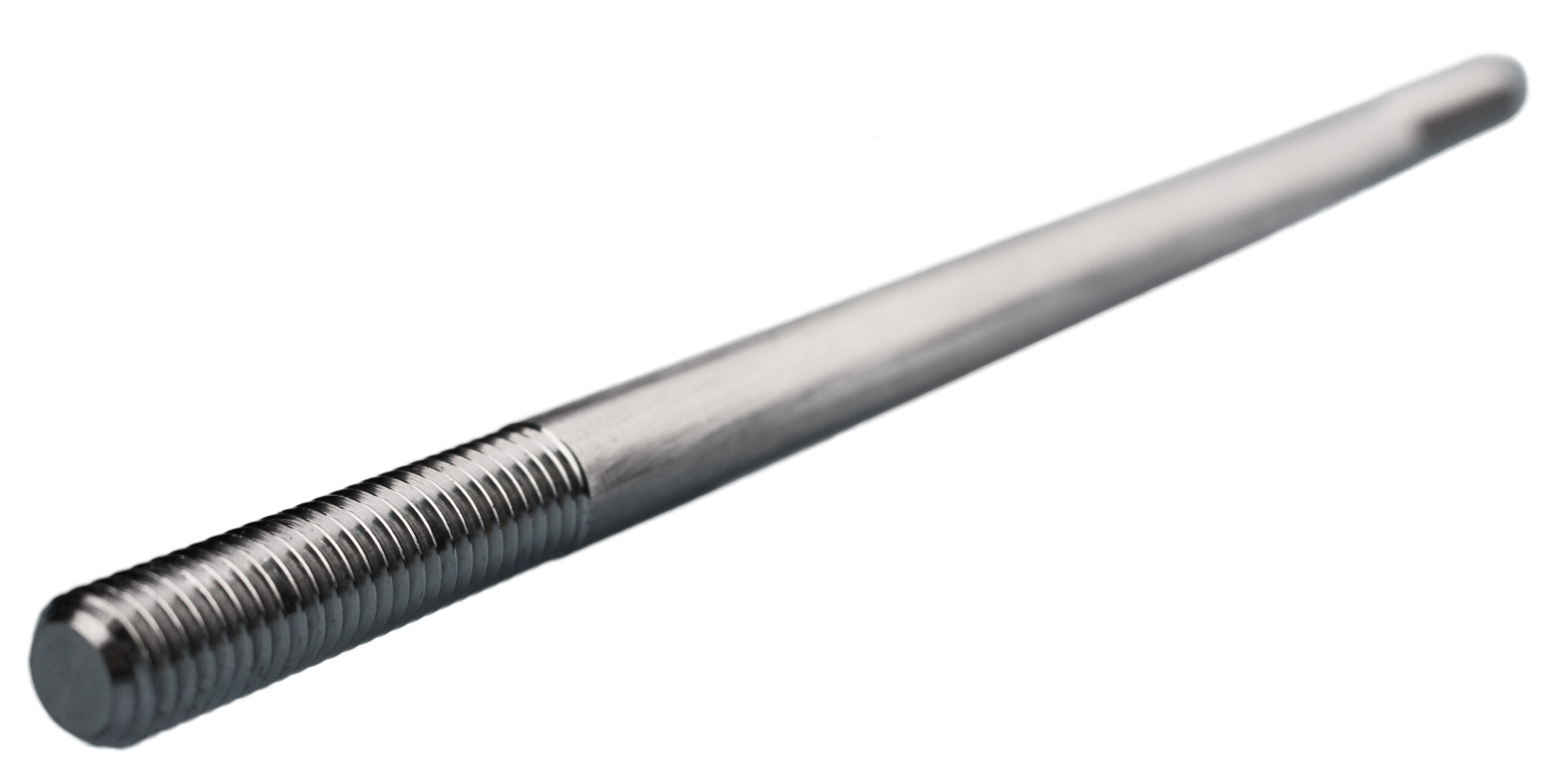

Flawtech P304 – Tie Rod – Aluminum (P304)

    Flawtech P304 – Tie Rod – Aluminum
    Starting at:

    $895.00 1. Quote Required



    This product has been discontinued.


    • NEW Product
    • Product Codes:
      P304
    • Tech Support Available
    • Product Weight: 3.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    The FlawTech FPI/ET Practical Exam Specimens are designed to replicate “basic” aerospace geometries and include a mix of flaw types designed to be detected with Fluorescent Penetrant and Eddy Current inspection.

    Material:
    • Aluminum
    • 0.5” OD x 12” L

    Flaws:
    • 3x randomly placed flaws per specimen.
    • Flaws will consist of surface breaking Cracks and Pores.

    Manufacturing Documentation:
    • FlawTech can submit design drawings for customer review and approval if preferred

    Final Documentation:
    • Certificate of Conformance, Final Acceptance Inspection, “As Built” CAD drawing and Measuring & Test Equipment Certificates

    Additional Info
