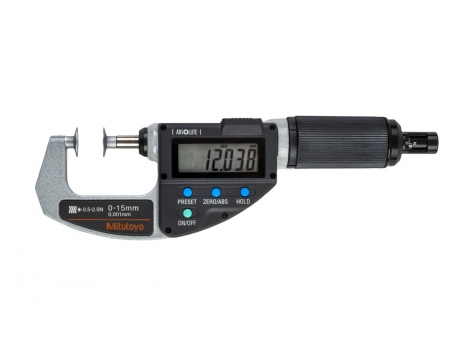

Mitutoyo 227 Series Disc Micro Nonrotating Spin QM Adjust (Mitutoyo-Disc-Micro-Nonrotating-Spindle-Quickmike-)

    Mitutoyo 227 Series Disc Micro Nonrotating Spin QM Adjust


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      227-221-20
    • Tech Support Available
    • Product Weight: 2.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Description

    • Can measure lengths of spur and helical gears
    • Can measure in tight spaces
    • No overspeed errors
    • Quickmike type can feed 20 times faster
    • Satin chrome finish
    • Laser engraved measurements on thimble
    • Non-Slip finish
    • Comes in a plastic case

    Features

    • Technology: Digimatic QuickMike
    • Units: Metric
    • Resolution: 0.001mm
    • Accuracy: ±4µm
    • SPC Output: Yes
    • Ratchet/Thimble: Ratchet Stop
    • Disk Diameter: 14.3 ømm
    • Graduation: 0.01mm
    • Flatness: 1µm
    • Parallelism: 3µm or less
    • Display: LCD
    • Battery: SR44 (1 pc.) 938882
    • Battery Life: Approx. 5 years under normal use
    • Optional Accessories: 05CZA662, 05CZA663
