Mitutoyo 570 Series Absolute Digimatic Height Gauge (Mitutoyo-ABS-Digi-Height-Gauge)

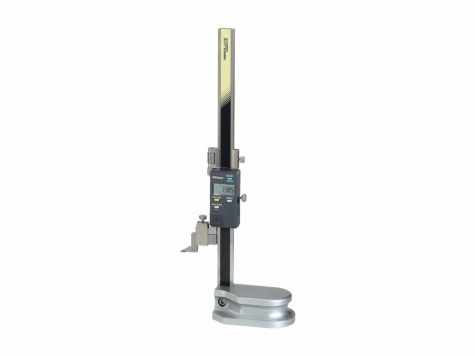

    Mitutoyo 570 Series Absolute Digimatic Height Gauge
    Starting at:

    $704.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      570-402
    • Tech Support Available
    • Product Weight: 50.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    This is an update of the height gage standard type that has gained a strong reputation in the manufacturing field. The DATA button is larger, and the button layout is redesigned to improve operability. In addition, it is now easier to set up the "U-WAVE" wireless measurement data communication system, making the system even easier to use in smart factories and other places where measurement data output is essential.
    • Fine adjustment for the ABS Digimatic Height Gauge to have smoother movements.
    • No overspeed errors
    • Water resistant SPC cables
    • Easy to operate with larger buttons
    • Durable
    • Base is shaped for better grip on the work area
    • Battery can last up to 5,000 hours under normal use
    • Has unlimited response speed

    Features

    • Maximum permissible error EMPE: ±0.03 mm±0.05 mm±0.0015 in/±0.03 mm±0.0020 in/±0.05 mm
    • Measuring range: 0 to 300 mm0 to 600 mm0 to 12 in/0 to 300 mm0 to 18 in/0 to 450 mm0 to 24 in/0 to 600 mm
    • Resolution: 0.01 mm0.0005 in/0.01 mm
    • Functions: ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion*
    • Drive method: Slider-feed wheel (manual)
    • Data output: DIGIMATIC d1
    • Max. response speed: Unlimited
    • LCD character height: 12 mm
    • Battery life: Approx. 20,000 hours with continuous use, 5 years under normal use

    Additional Info

    Brochure
