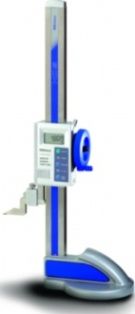

Mitutoyo 570 Series ABS Digi Height Gauge w/Slider Feed Wheel (Mitutoyo-ABS-Digi-Height-Gauge-W-Slider-Feed-Wheel)

Features:

• Built in ABSOLUTE linear encoder. This encoder eliminates the necessity of setting the reference point at every power-on. It has improved reliability because no over-speed error will occur.
• Rigid column structure ensures high measuring accuracy.
• With large smooth slider feed wheel.
• Carbide-tipped scriber is provided.
• With SPC data output.

Function
Origin setting, ABS/INC switching,
Power ON/OFF, Data hold, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error

Standard Scriber Provided
Metric models: Carbide-tipped scriber (07GZA000), scriber clamp (05GZA033)
Inch/Metric models: Carbide-tipped scriber


Technical Data
Resolution: 0.01mm or .0005in./0.01mm
Display: LCD, 6-digit
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Un limited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20000 hours under normal use
