FlawTech Multi Method NDT Kit (MMNDT-K1)

    FlawTech Multi Method NDT Kit
    Starting at:

    $8,730.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Codes:
      MMNDT-K1
    • Tech Support Available
    • Product Weight: 80.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description



    The Ultimate NDT Training and Testing Flawed Specimen Kit is designed to facilitate comprehensive training and testing across six different NDT methods: UT, RT, MT, PT, VT, and ET. It includes 30 flaws that encompass a wide spectrum of pre-service and in-service flaw types, making it ideal for evaluating and comparing indication responses among the various NDT methods. The kit features a set of 10 specimens made from mild carbon steel alloy, with options for custom alloys available upon request. Each specimen is meticulously crafted to incorporate three distinct flaws, ensuring a total of 30 detectable flaws throughout the kit. This design enables effective practice and proficiency development in non-destructive testing applications.

    Kit Documentation Includes:

    • Certificate of Conformance
    • As Built CAD Drawings
    • UT Inspection Reports
    • RT, Digital & Film Radiograph Film and Technician Sheet
    • Measuring & Test Equipment Certificates
    • Test Sheets (used during technician training and testing)

    Each specimen contains flaws that are designed to be detectable using multiple NDT methods.

    • Flaws are detectable by a variety of NDT methods; VT, MT, PT, UT (Conventional & PAUT), RT, ET.
    • Please note that not all flaws are detectable with every method.

    Features

    • Kit contains 30 flaws which cover a wide range of pre-service and in-service flaws types
    • The Kit assist in the training and testing of at least 6 different NDT methods; UT, RT, MT, PT, VT & ET
    • Total of 30 flaws in the Kit

    Specs

    • Set of 10 Specimens
    • Specimen Alloy Mild Carbon Steel
    • Custom Alloys Available

    Additional Info

    Product Catalog

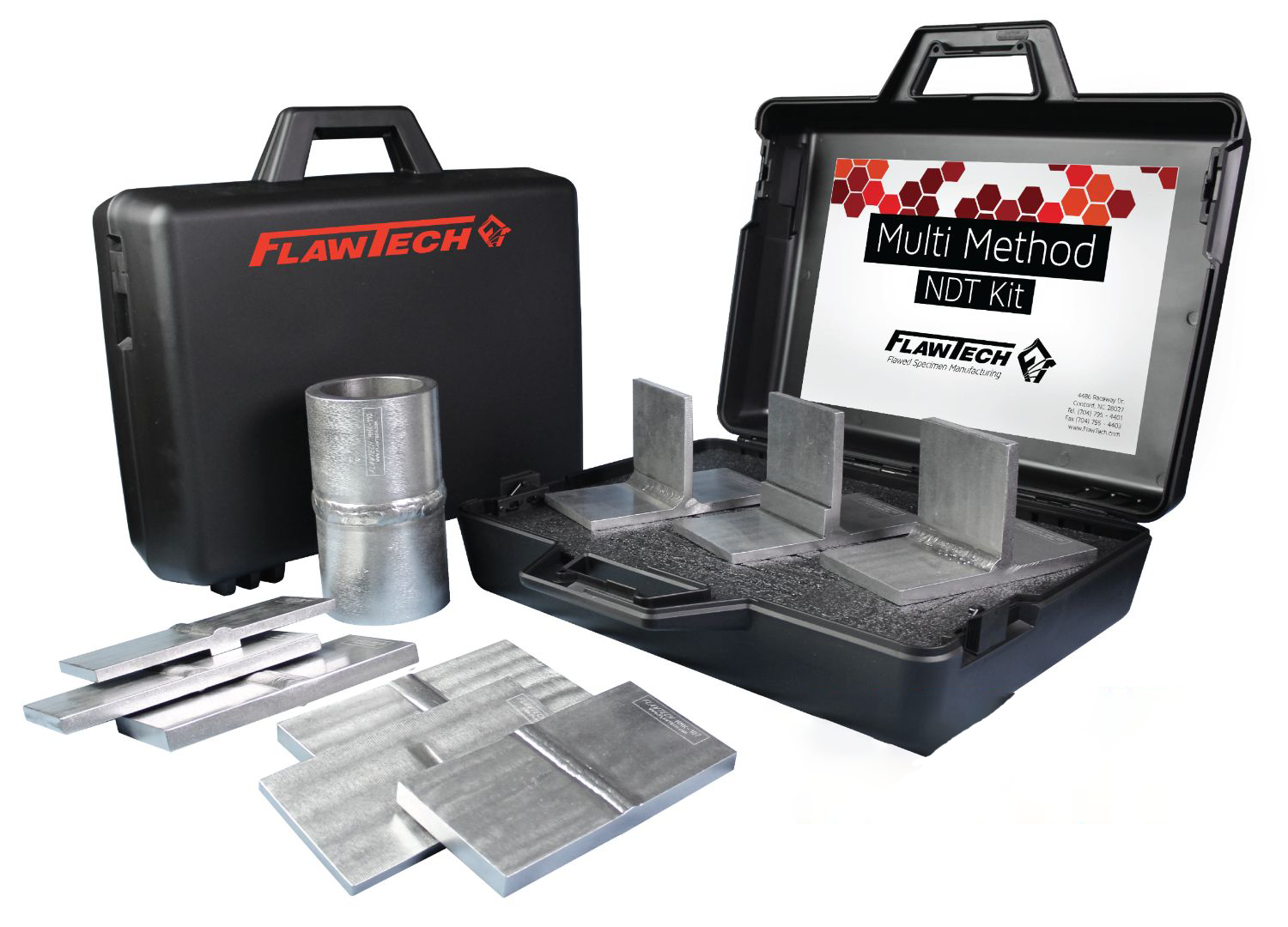

    Package Includes

    • 1) Tee, 0.375” T x 4” X 8” x 4” w/ Double Bevel Weld
    • (1) Tee, 0.375” T x 4” x 8” x 4” w/ Single Bevel Weld w/ Backing Bar
    • (1) Tee, 0.5” T x 4” x 8” x 4” w/ Double Fillet Weld
    • (2) Plates, 0.625” T x 4” x 8” w/ Single V Weld Bevel
    • (1) Plate, 0.625” T x 4” x 8” w/ Double V Weld Bevel
    • (1) Plate, 0.375” T x 4” x 8” w/ Single V Weld Bevel
    • (1) Plate, 0.375” T x 4” x 8” w/ Single V Weld Bevel w/ Backing Bar
    • (1) Plate, 0.5” T x 4” x 8” w/ Single V Weld Bevel
    • (1) Pipe, 4” Sch160 (0.5” wall) x 8” w/ Single V Weld Bevel
    • 2 Carrying Case(s)
    • Documentation Package
