MIL-STD-271F Magnetic Particle Test Plate (MILSTD271.MP.CS)

    MIL-STD-271F Magnetic Particle Test Plate
    Starting at:

    $1,549.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      MILSTD271.MP.CS
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

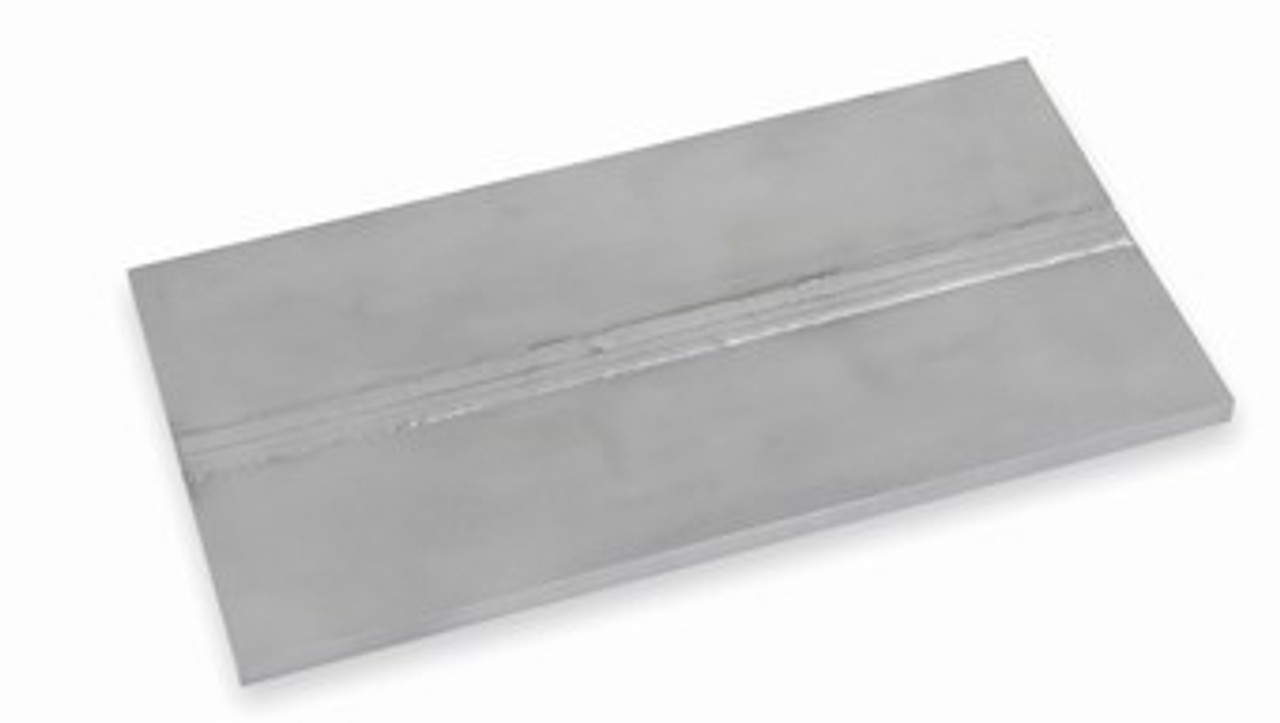

    The MIL-STD-271F Magnetic Particle Test Plate contains (2) EDM notches at 0.020 deep x 0.006 wide x 0.063 long. Material is 3/8 thick low alloy steel x 6 wide x 12 long. Notches are filled flush with a nonconducting material, such as epoxy, to prevent mechanical holding of the indicating medium. One notch is oriented parallel to the weld, the other perpendicular to the weld. In accordance with MIL-STD-271F (SHIPS), Paragraph 4.3.1.2. Also meets requirements of newer NAVSEA Tech Pub T9074-AS-GIB-010 /271, Paragraph 4.3.1.2.
