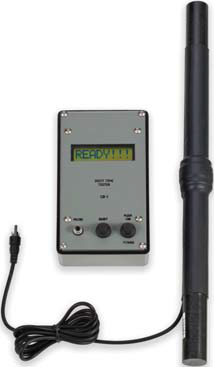

Magnaflux Shot Timer (MF-622901)

    Magnaflux  Shot Timer




    DISCONTINUED

    This product has been discontinued.


    • Product Codes:
      MF-622901
    • Tech Support Available
    • Product Weight: 10.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

     The Magnaflux Shot Timer provides universal shot time detection for all MPI Equipment. It reads shot time with 10 ms resolution on digital display and detects how long magnetic field is present. Precision reference air coil transducer. Microprocessor controlled for accurate signal capture and peak detection.



    Specifications Compliance:

    ASTM E709-08, ASTM E1444
