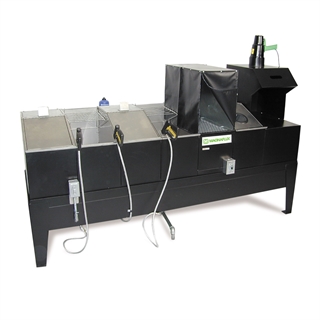

MagnaFlux Zyglo ZA-1227 Method D, Post Emulsified Hydrophilic FPI System

The ZA-1227 Post Emulsified Hydrophilic Penetrant Inspection System is a compact, standalone 7-station system designed for batch and low volume fluorescent inspection of small to medium size parts.

DIMENSIONS: 83 x 28 x 36 in / 210.8 x 71.1 x 91.4 cm

STATIONS:

• Penetrant

• Pre-Rinse

• Remover

• Final Rinse

• Dryer

• Developer

• Inspection

Product Data Sheet

• Overall Length: 83” (210.8cm)

• Overall Width: 28” (71.1cm)

• Working Height: 36” (91.4cm)

• Unit Weight Approximately 650 lbs. (295kg)

• Tank size: 12.9”L x 27.6”W x 16”D (32.8cm x 70.1cm x 40.6cm)

• Ten (10) gallon penetrant tank capacity

• Stainless steel penetrant tank

• Stainless steel pre-rinse tank with hand hose and spray nozzle

• Stainless steel air agitated remover tank

• Stainless steel final rinse tank with hand hose and spray nozzle

• Thermostat controlled dryer • Stainless steel developer tank

• Inspection bench/booth with EV6000 hand held LED black light

• Electrical Requirement: 115 volts, 60 hertz, single phase facility power
