MagnaFlux Zyglo ZA-1633 Method B, Post Emulsified Lipophilic FPI System

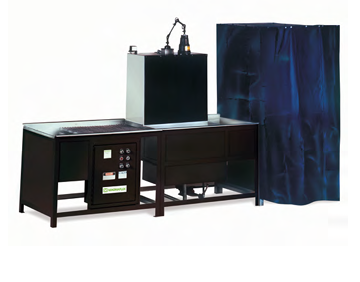

The Zyglo® ZA-1633 Post Emulsified Lipophilic Penetrant Inspection System is a standalone 8-station system designed for batch and low volume fluorescent inspection of small to medium size parts. The system comes with a standalone inspection booth with black light, white light, ventilating fan, and digitally calibrated dryer control.

DIMENSIONS: 165 x 34 x 36 in / 419.1 x 86.4 x 91.4 cm

STATIONS:

• Penetrant

• Drain #1

• Emulsifier

• Rinse

• Drain #2

• Dryer

• Developer

• Inspection

Product Data Sheet

• Twenty-seven (27) gallon penetrant tank capacity

• Stainless steel penetrant tank with inside dimensions of 15.8”L x 33”W x 14.8”D (40.1cm x 83.8cm x   37.6cm)

• Stainless steel drain area with drain rack, working dimensions of 31.8”L x 33”W

• Stainless steel emulsifier tank with inside dimensions of 15.8”L x 33”W x 14.8”D

• Stainless steel drain area with drain rack, working dimensions of 18”L x 33”W

• Stainless steel rinse tank, hand hose and  spray nozzle, inside dimensions of 22”L x  13”W x 15.5”D (Includes 1 EV600 hand held  LED black light)

• Thermostat controlled dryer, inside dimensions of 30”L x 15.5”W x 29”D
