Name: viZaar Matrix E3 Remote Visual Inspection Documentation System
Brand: viZaar
SKU: MATRIX
Availability: InStock

Description

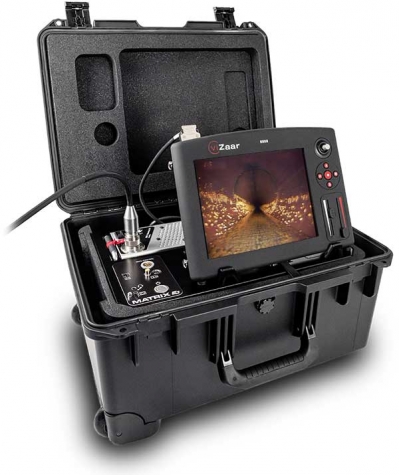

The viZaar MATRIX E3 Remote Visual Inspection Documentation System enables camera operation, documentation, and analysis of image and video inspection results. The MATRIX system provides everything needed for optimal test documentation. The ability to configure and design a modular, all-in-one viZaar RVI system that works with any inspection camera is a smart choice.

viZaar Documentation Software & Data Storage

viZaar's software solution works without the need for a PC, thanks to editable files and folder structures. The data is stored on the integrated SSD on the MATRIX E3 and can be edited, annotated, and narrated as required. All data transfers easily via USB or SD card. All results are shown on its high resolution integrated VUSCREEN (PPE compatible touchscreen).

Annotating Findings

Add annotations, text, point markers and other reference data as needed through the MATRIX E3 in real-time through an easy-to-use VUSCREEN PPE touchscreen display. If you want to narrate and add real-time audio, simply connect the headset and record to any inspection video.

Reference Measurement

An integrated measurement system, provides accurate measurement of linear distance, radius, circumference and area. Save images with measurement data and you can re-measure as required.

Compatible Across Different RVI Solutions

The MATRIX E3 is the ideal control and documentation unit for the viZaar Revolver 80 and viZaar SNK 60x RVI cameras. Fiberscopes can also be directly connected to the MATRIX E3, allowing full capture and edit facilities for complex, articulating inspections. Even specialized videoscopes such as the viZaar VUFLEX-S and -C steam generator inspection probes can be connected to the MATRIX E3, among other systems.

Additional Info

Brochure

Related Accessories

Package Includes

Specifications

Technical Data Matrix E3
Dimensions (W x H x D)	540mm/21.26” x 290mm/11.41” x 400mm/15.74”
Weight	15.8 kg/35 lbs with battery 11.2 kg/24.7 lbs without battery
AC Input	100 VAC – 240 VAC / 50/60Hz / max. 250 Watt
Housing	Impact resistant HDPE/HWU plastic, aluminium profile with plastic edge protection
Video Input	PAL or NTSC composite and S-Video, auto detecting
Video Output	HDMI worldwide standard (1024 x 768px)
System Memory	Up to 16 hours of full resolution MPEG4 video-recording or several thousand BMP and JPG high quality images
Environmental	Operation temperature -15°C to +48°C (5°F to +118°F) Storage temperature -25° to +65°C (-13°F to +150°F) Relative humidity max. 95%, non condensing
Connectors and Outlets	USB 3.0, recording remote control, 12VDC / 750mA Aux-Out, optional Composite and S-Video output (PAL and NTSC)
Technical Data Vuscreen Matrix E3
Dimensions	320mm/12.6” x 30mm/1.18” x 230mm/9.06”
Weight	1.6 kg/3.3 lbs without cable
Mounting	Base Unit: integrated recording Portable: shoulder harness
LCD Monitor	10.4“ LCD, contrast 1200:1, 400 cd, sunlight transreflective LED illumination, 262.144 colors, viewing angle all directions +/- 90°
Operation	Resistive touch screen incl. five direct access buttons and joystick
Technical Data Docking Modules Matrix E3
Option docking bay case	Dimensions in mm / inch: (W) 415 / 16.34” x (H) 465 / 18.31” x (D) 190 / 7.48” Weight: 3,3 kg / 7.2 lbs, transport case for optional docking bays.
Option LCD display protective foil	Highly transparent, easy to mount display cover with antireflective coating fits perfectly and protects the touch screen from any dirt and scratching, chemical substances, corrosion, destruction, or deterioration.
Option AC power pack	Dimensions in mm / inch: (W) 342 / 13.46” x (H) 100 / 3.93” x (D) 133 / 5.23” \| Weight: 2.2 kg / 5.1 lbs
Option INVIZ SNK / Revolver 80 pack	MATRIX docking module for connecting, controlling, recording with the SNK PTZ and the Revolver 80 cameras. Dimensions in mm / inch: (W) 342 / 13.46” x (H) 100 / 3.93” x (D) 133 / 5.23” \| Weight: 2.9 kg / 6.5 lbs
Option battery pack	NiMh: 9 Ah, 24 Volt. Operation time: approx. 1,5 to 2 hours. Operation environment: -25°C to +45°C (-13°F to +113°F). Charging unit included. Dimensions in mm / inch: (W) 342 / 13.46” x (H) 100 / 3.93” x (D) 133 / 5.23” Weight: 4.7 kg / 10.4lbs

Features

Creation of comprehensible and reproducible documentations
Documentations without the need of a PC, thanks to editable files and folder structures
Portable documentation unit, easy to transport
Ideal control and documentation unit for Revolver 80 and SNK 60x
Always work flexibly with optional battery operation up to 5 hours
Full range of connections - connect to any inspection camera HDMI output to connect external monitors or recording devices
Intuitive and easy operation of all viZaar inspection cameras
