I-Gauging Stainless Steel Dial Caliper - Inch or Metric (IG100-020)

    I-Gauging Stainless Steel Dial Caliper - Inch or Metric
    Starting at:

    $49.00 1. Quote Required



    Click Here to view the product replaced by this product.

    This product has been discontinued.


    • NEW Product
    • Product Codes:
      IG100-020
    • Tech Support Available
    • Product Weight: 3.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    The GAL I-Gauging Main Beam Dial Caliper has 4-way measurements: inside, outside, depth, and step, with an easy zero adjustment per revolution. This Caliper has a shock-proof design and includes an adjustable bezel with a locking device. The main beam is extra rigid for boosted precision. Accuracy is ±0.0015"/±0.04mm over 6" travel. Resolution is 0.001"/0.025mm. The Extra Rigid Main Beam Dial Caliper has direct reading and graduations of 0.001" (0.01 mm).

    Features

    • Easy-to-read dial indicator
    • Portable
    • 4-way measurement
    • Rolling wheel for accuracy
    • Locking mechanism

    Specs

    Model IG100-020
    Measuring Range 0-6"/0-150mm
    Accuracy ±0.0015"/±0.04mm
    Resolution 0.001"/0.025mm
    Measurement Units Inch
    Inch Fraction
    Metric Conversion
    Measurement Type Inside
    Outside
    Depth
    Step
    Material Stainless Steel



    Additional Info

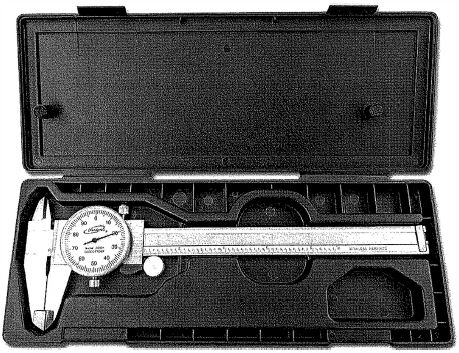

    Package Includes

    • Dial caliper
    • Protective plastic case
    • Optional NIST Certification
