Synergys LeakShooter Ultrasonic Leak Detector V2 (ID041619)

    Synergys LeakShooter Ultrasonic Leak Detector V2


    Quote Required Quote Required



    • Product Code:
      ID041619
    • Tech Support Available
    • Product Weight: 12.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description



    Used Leakshooter V2 Portable Ultrasonic Leak Detector (Demo Unit)

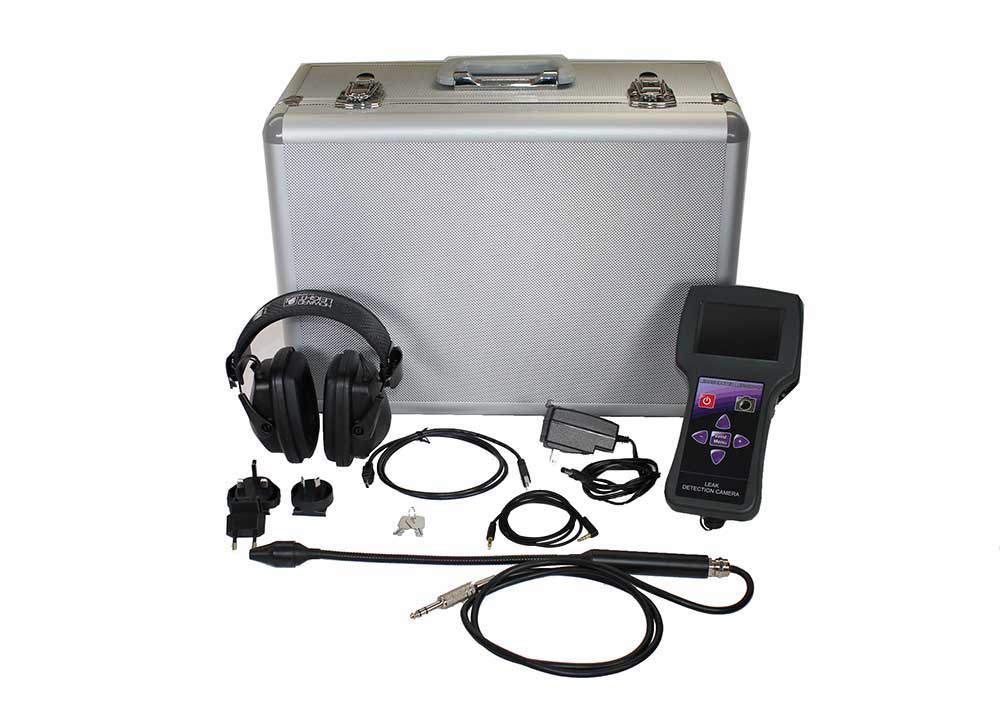

    ***INCLUDES:

    • Leakshooter V2 Electronic Instrument
    • Rechargeable Batteries
    • Charger 115v
    • SYNC Headphone
    • Cable for SYNC Headphone
    • LKSFLEX External Ultrasonic Flexible Sensor with Cable
    • USB Cable
    • Carrying Case for Instrument and Accessories
    • Operating Manual
    • 6 Month Warranty on Parts and Labor


    NOTE: This was a Berg Engineering demonstration package.


    Small Leak No Leak Big Leak

    Videos

    Specs

    Sensitivity

    Detect a leak of 0.1mm at 3 bars at 20m

    Camera

    Colour 640x480  pixels

    Display

    LCD colour 3,5" 320x240 pixels

    Pictures

    JPEG, number date and time

    Dynamic Target

    Red square with cross on strong  leak

    Yellow square with cross on light leak

    Measurements

    dB RMS and MAX

    Memory

    Up to 1000 pictures, can be downloaded to PC

    Communication

    USB cable supplied

    US sensor

    Open type

    Bandwidth +/- 2kHz à -6 dB

    Central frequency 40kHz +/- 1kHz

    Adjustable frequency mixer from 34 to 46 kHz

    Auto gain, and adjustable from 50 to 110 dB

    Headset

    Adjustable volume from 0 to 10

    Power supply

    Lithium-ion rechargeable battery

    Autonomy

    6 hours

    Temperature range

    -10°C to + 50°C

    Dimensions

    230mm x 100mm x 70mm

    Weight

    580g LKS1000 alone, with metallic case 3,9 kg

    Software

    LEAKVIEWER picture download

    Standards CE

    CEM 2004/108/CE: EN61000-6-4 & EN61000-6-2

    Accessories

    LKSFLEX Flexible 400mm US sensor

    LKSPROBE Mechanical US sensor

    LKSCOVER Holster
