Circle Systems CircleSafe 850A Water Based Dual Response, Case Of 12x19oz Cans (FG-3630)

    Circle Systems CircleSafe 850A Water Based Dual Response, Case Of 12x19oz Cans
    Starting at:

    $340.00 1. Quote Required



    Click Here to view the product replaced by this product.

    This product has been discontinued.


    • Product Codes:
      FG-3630
    • Tech Support Available
    • Product Weight: 16.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description


    Circle Systems Mi-Glow 850S-RTU (FG-3642) is a replacement for FG-3630. To Buy, Click Here.

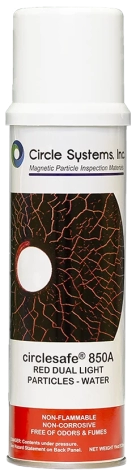

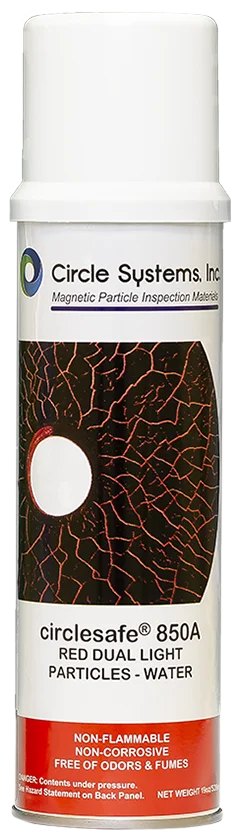

    CircleSafe® 850A is an aerosol spray featuring Mi-Glow® 601 dual response red particles and Wetting Agent 771 in a water-based solution. Mi-Glow® 601 particles are ultra-bright and undergo an advanced bonding process for exceptional sensitivity and brilliance. Designed for use with visible light, UV-A light, or a combination of both, this inspection medium detects discontinuities in structural fabrications, welds, and oil/gas fluid control components. The high particle concentration ensures strong indication buildup for easy detection. Packaged with carbon dioxide propellant, CircleSafe® 850A is odor-free, fume-free, non-combustible, and safe for magnetic particle inspections.

    Features

    • Exceptional particle mobility
    • Dual response capability offers inspection equipment flexibility
    • Cost saving
    • No odor or fume inspection
    • Excellent surface coverage for reliable magnetic particle inspection
    • No odor – no fume propellant reduces health concerns in confined areas
    • Dual response - capability with UV-A, white, or blue light technologies

    Specs

    Physical Characteristics
    Red solution with a slight detergent odor, contained in an aerosol package.

    Particle Certification
    Particles meet all relevant industry specifications. Certification is included with each shipment.

    Particle Color: Red
    Average Particle Size: 10 µm
    AMS Standard: N/A
    SAE Sensitivity*: N/A
    Temperature Range: 120°F Maximum
