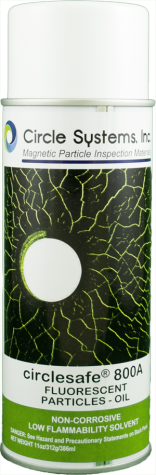

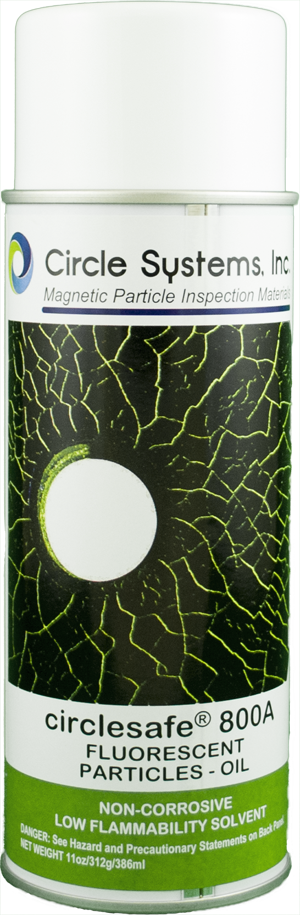

Circle Systems CircleSafe 800A Oil Based Fluorescent (FG-3130)

    Circle Systems CircleSafe 800A Oil Based Fluorescent


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      FG-3130
    • Tech Support Available
    • Product Weight: 15.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description


    CircleSafe® 800a uses the latest Mi-Glow® 800 particles, known for their exceptional sensitivity, uniform size, and ideal magnetic properties for fluorescent magnetic particle inspection. It is a fluorescent yellow/green powder pre-mixed with our petroleum carrier fluid, CircleSol® M, which ensures excellent particle mobility and surface coverage for reliable inspections. CircleSafe® 800a is designed for use with UV-A light to detect discontinuities in forgings, castings, welds, and piping.


    Features

    • High flashpoint & low odor helps reduce safety concerns
    • Meets all – relevant industry standards
    • Economical
    • Circle Systems unique bonding method offers a very tightly bonded particle which provides total particle encapsulation, eliminating free unbonded pigment, resulting in a low background, high performing magnetic particle inspection powder
    • Sensitivity – The superior Mi Glow 800 particles have larger surface areas which mean smaller sized particles with increased sensitivity and brightness

    Specs

    Physical Characteristics
    Forest green liquid, slight odor contained in an aerosol package.

    Particle Certification
    Particles conform to or exceed all relevant specifications including but not limited to ASTM E 1444, MIL-STD-271, NAVSEA 250-1500-1, ASTM E 709, ASME B & PV Code – Section V, AMS 3046, AMS 3161, AMS 2641 and A-A-59230.

    Particle Color: Fluorescent Yellow-Green
    Average Particle Size: 3 µm
    AMS Standard: 3046
    SAE Sensitivity*: 8
    Temperature Range: 120°F Maximum
