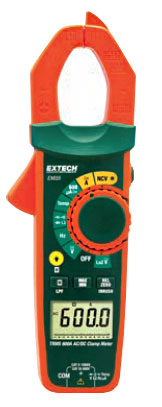

Extech EX655 AC DC Clamp Meter
SKU:
EX655
$139.99
New product
FREE Ground Shipping
FREE Calibration
FREE Accessories
Intrinsically Safe
Intrinsically Safe
Product details
Tech support available
- Product code
- EX655
- Original Code
- Original Code 2
- NSN
- Product weight
- 3.00
Description
The Extech EX655 AC/DC Clamp Meter features True RMS, providing accurate readings while measuring distorted or noisy waveforms, and Low Impedence mode, eliminating false readings caused by ghost voltages. The EX655 has a low pass filter that attenuates high frequencies to reduce noise. Inrush mode is available to capture current surges during motor startup. This Clamp Meter comes complete with test leads, general purpose bead wire temperature probe, and 3 AAA Batteries. A convenient auto-power off conserves battery life.
The EX655 Clamp Meter has a jaw size of 1.18" (30 mm) to accomodate conductors up to 350MCM. An LED worklight is installed in the meter to better illuminate the workspace.
Additional Info
Package Includes
Specifications
| Model | EX655 |
| AC Current | 60A, 600A (0.01A) |
| DC Current | 60A, 600A (0.01A) |
| Basic accuracy | ACA: ±2.5% of rdg DCA: ±2.5% of rdg |
| AC/DC μA Current | 600μA (0.1μA) |
| DC Voltage | 1000V (0.1mV) |
| AC Voltage | 750V (1mV) |
| Basic accuracy | ACV: ±1.2% of rdg DCV: ±0.8% of rdg |
| Non-Contact Voltage (NCV) | 100 to 1000V |
| Resistance | 60MΩ (0.1Ω) |
| Capacitance | 60mF (0.01nF) |
| Frequency | 10Hz to 1MHz (0.01Hz) |
| Temperature | -40 to 1832°F (1°F) -40 to 1000°C (1°C) |
| Continuity/Diode Test | Yes |
| Dimensions | 9x3x1.6" (228x77x41mm) |
| Weight | 9.4oz (265g) |
