ETher NDE RailCheck (ETher-NDE-RailCheck)

    ETher NDE RailCheck


    Quote Required Quote Required



    This product has been discontinued.


    Share this product
    • Product Codes:
      ETher-NDE-RailCheck
    • Tech Support Available
    • Product Weight: 0.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

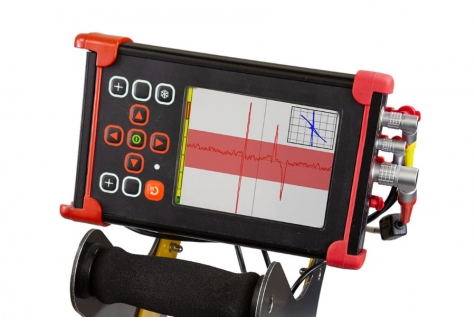

    The ETher NDE RailCheck is a single rail Eddy Current trolley that detects surface-breaking defects. This device is a hand held flaw detector for specific rail inspection. It can be easily used with a rail trolley and Ether NDE's rail probes.

    The on-board RailCheck Eddy Current flaw-detector can be configured to trigger an audible and visual warning should a defect be indicated; the display shows the presence of potential defects in the rail and the complete inspection is continuously recorded for later analysis.

    The FILUS EC-1 Trolley is a hand-pushed trolley, specially designed to check a single rail using Eddy current methods.

    Features

    • Large daylight readable display 145mm(5.7")
    • Rugged lightweight housing 1.2kg (2.6lbs)
    • 2 year standard warranty
    • Widescan rail probe
    • Defect sizing
    • Rotary encoder
    • Vector display
    • Single rail Eddy Current trolley detects surface breaking defects.
    • Unique probe designed to follow the shape of the top and gauge faces of the rail.
    • Adjustable height rollers to ensure a constant gap between probe and rail for smooth probe carriage.
    • Sprung Diablo wheels to ensure a good reference to the gauge face.
    • User friendly interface with a single level menu system.
    • Quick function side bar.

    Additional Info

    Brochure
