ETher NDE PhaseCheck (ETher-NDE-PhaseCheck)

    ETher NDE PhaseCheck


    Quote Required Quote Required



    This product has been discontinued.


    • Product Codes:
      ETher-NDE-PhaseCheck
    • Tech Support Available
    • Product Weight: 0.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

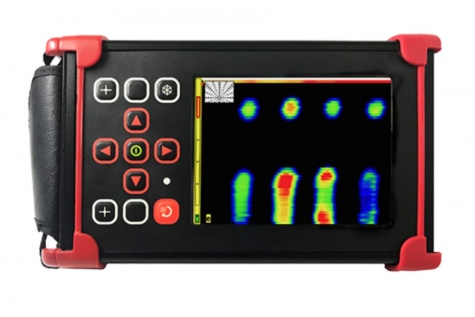

    The PhaseCheck is the latest addition to the core range of ETher NDE. PhaseCheck has advanced an advanced dual probe and advanced Eddy Current dual frequency flaw detector with c-scan capability.

    Flexible dual bridge and reflection probe inspection is possible as two probes may be used at the same time. As with all the core eddy current flaw detectors in our range, the PhaseCheck can be used with all reflection, bridge and absolute probes from all manufacturers and uses industry standard 12-Way Lemo and 4 Way Lemo connectors, reducing the need to use adapters.

    Features

    • Advanced dual probe, dual frequency advanced eddy current flaw detector with c-scan capability.
    • Supports x/y and R/Theta manual scanners with an easy scan calibration.
    • Allows up to two encoders to be connected, has flexibility that will permit many scanners mechanisms to be interfaced.
    • Flexibile dual bridge and reflection probe inspection
    • Ability to post analyze data for peer review and audit purposes.
    • User friendly interface, single level menu system with a "quick function" sidebar
    • Large daylight readable display 145mm (5.7")
    • 2 year standard warranty
    • C-scan
    • On board eddy current modes
    • Data logging
    • Trace
    • Operator defined "soft keys"
