Flawtech Boiler Tube Damage Kit (EPRI-K1)

    Flawtech Boiler Tube Damage Kit
    Starting at:

    $6,080.00 1. Quote Required



    This product has been discontinued.


    • Product Codes:
      EPRI-K1
    • Tech Support Available
    • Product Weight: 115.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

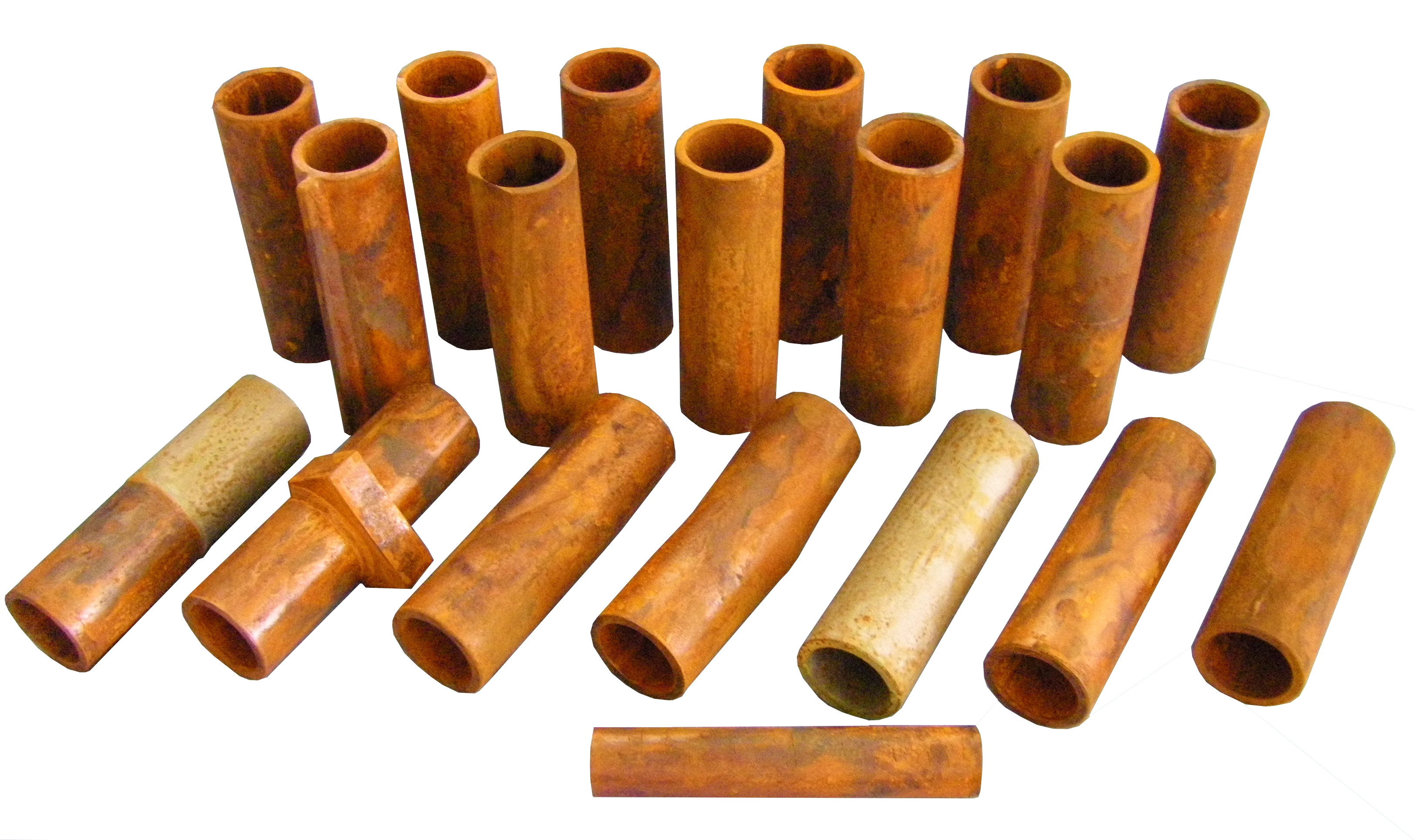

    Kit contains 19 Boiler Tubes with various damage indications manufactured by FlawTech while incorporating EPRI Technology; representing a complete range of fossil-fired boiler tube failure mechanisms steam and water touched.

    Material: 18 tubes are SA513 Type 5 Gr1020/1026 c/s and 1 tube is 304/304L s/s.

    Flaws / Indications:

    • Long Term Overheating/Creep
    • Fire Side Corrosion (Coal)
    • Toe Crack, Stress Corrosion (Stainless tube)
    • Soot Blower Erosion
    • Fatigue Crack (Toe)
    • Maintenance Damage
    • Pitting
    • Rubbing/Fretting
    • Chemical Cleaning Damage (Thinning & Pitting)
    • Material Flaw (Forging Lap)
    • Corrosion Fatigue Crack
    • Fly Ash Erosion, Hydrogen Damage
    • Acid Phosphate Corrosion
    • Caustic Gouging
    • Supercritical Waterwall Cracking (1.5″ OD tube)
    • Weld Defects (Lack of Fusion & Porosity)
    • Graphitization

    Document Package: Includes C of C, “As Built” Drawings, Ultrasonic Report, Measuring & Test Equipment Certificates and Material Test Reports.

    Carrying Case: Included (Rolling & Lockable)

    Kit Weight & Dimensions: ~115LBS, 24” x 16” x 10”

    EPRI Program 63 Members Receive a Special Discount.

    Use This Kit to Assist in the Training and Qualifying of NDE Technicians to Accurately Identify Specific Boiler Tube Damage Found in Fossil Plants.

    Specs

    Tube Specifications: (18 tubes) @ 2.5” OD x 0.25” Wall x ~8” Long and (1 tube) @ 1.5″ OD x 0.25″ Wall x ~8″ Long
