Waygate Krautkramer DynaPOCKET Portable Hardness Tester

Formerly the Krautkramer DynaPOCKET

This is where the small DynaPOCKET comes out real big.

The Waygate Technologies DynaPOCKET, a Baker Hughes Business Product (formerly GE Inspection Technologies) is an instrument for on-site hardness testing. Thanks to its compact size, it enables tests in almost any position, especially in places where the access is difficult due to the test object's geometry. Heavy, non-transportable components are also a case for the DynaPOCKET, the same as permanently installed system parts or machines.

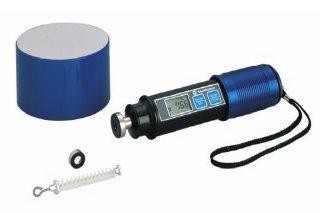

Unit Includes:

• Instrument
• 20mm Standard Test Attachment
• 13.5mm Test Attachment
• 2 ea. “AAA” Alk. Batteries
• Operating Manual
• Operating Card
• Plastic Carrying Case
• Cleaning Brush
• ISO 17025 Certficate of Calibration

Application Examples

Rebound hardness testing using the DynaPOCKET is mainly suitable for solid workpieces made of steel or cast materials.

Typical applications include:

• Large, coarse-grain components with surfaces as rolled
• Forgings with inhomogeneous surface structures
• Workpieces made of cast materials of all types
• Material sorting in material stores
• Hardness testing of large series products during the production
