FlawTech Standard NDT Demonstration Kit

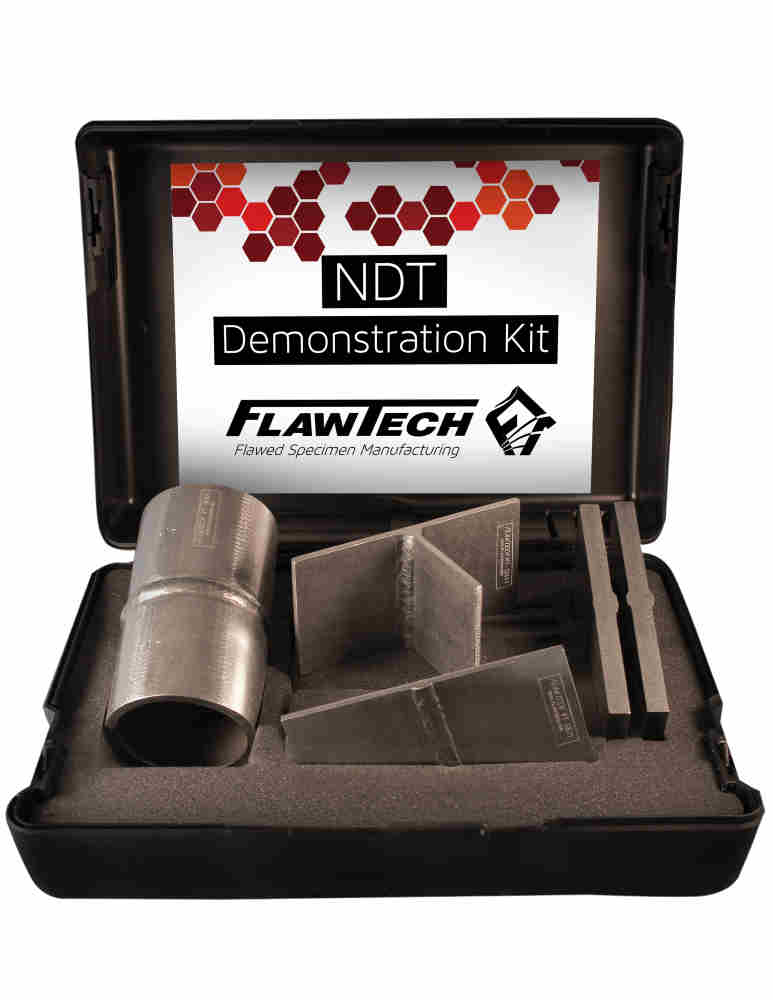

This FlawTech Standard NDT Demonstration Kit is made of Carbon Steel and comes with a total of 5 specimens, 3 plates, 1 tee, and 1 pipe. When it comes to flaws, there are two in each plate, as well as two in the tee, and three in the pipe for a total of 11. To provide you with extra protection for these materials, a neatly packaged 6" x 16" x 20" carrying case is included with specimens.

Documentation Package

• Certificate of Conformance

• CAD drawings

• RT film

• Test Sheets


Flaws Included:

• #11 - Toe Crack fillet

• #15 - Center Line Crack DV (sub-surface)

• #18 - Base Metal Crack SV

• #19 - Base Metal Crack in root HAZ

• #20 - Crater Crack (crown stop-start area)

• #30 - Porosity SV (sub-surface)

• #32 - Porosity SV (surface)

• #37 - Slag Inclusion SV

• #54 - Lack of Fusion Fillet (surface breaking)

• #57 - Incomplete Root Penetration DV

• #71 - Excess Root SV


Product Data Sheet

Product Catalog

• Material: Carbon Steel
• Flaws: 2 each in plates and tee, 3 in pipe, for a total of 11
• 5 Specimens
• MT/PT (1) Tee: 0.25”T x 4” x 8” x4”
• VT (1) Plate: 0.25”T x 4” x 8”
• UT (1) Plate: 0.625”T x 4” x 8”
• RT (1) Pipe: 4” Sch80 (0.337” wall) x 8” & (1) Plate: 0.625”T x 4” x 8”
