Cygnus 2+ (Hands Free) - Ultrasonic Thickness Gauge (CYGNUS-2-PLUS)

    Cygnus 2+ (Hands Free) - Ultrasonic Thickness Gauge


    Quote Required Quote Required



    This product has been discontinued.


    • Product Code.:
      CYGNUS-2-PLUS
    • Tech Support Available
    • Product Weight: 12.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

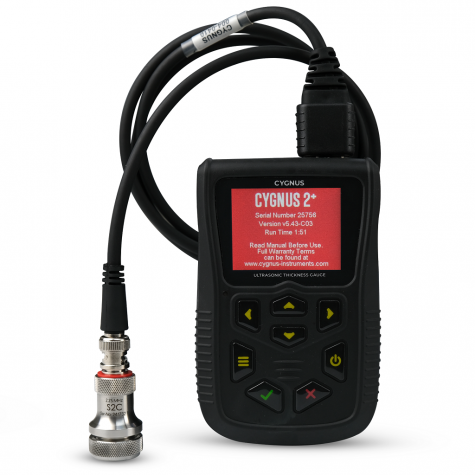

    The Cygnus 2+ Ultrasonic Thickness Gauge is a convenient and reliable tool designed for hands-free operation. It features an end-mounted screen that displays measurements, making it suitable for various applications such as rope access, hull UTM inspection, civil engineering, marine structures, structural integrity inspection, and ship surveys. This gauge can accurately measure the wall thickness of different materials, including plastics and metals with varying levels of corrosion and pitting. Here are its key features:

    1. Multiple-Echo Mode: Provides precise measurements through coatings as specified by Classification Societies.
    2. Echo-Echo and Single-Echo Modes: Suitable for heavily corroded metals with thin or no coating.
    3. Hands-Free Operation: Can be mounted on the wrist, waist belt, or harness.
    4. End-Mounted Display: Allows easy viewing during rope access or climbing work.
    5. Front Display: Facilitates gauge setup.
    6. Deep Coat Function: Ignores coatings up to 20mm thick.
    7. MSI™ (Measurement Stability Indicator): Ensures stable and reliable readings.
    8. Intuitive Menu: Easy-to-use menu interface.
    9. Extremely Rugged Enclosure: Shock and impact proof according to US MIL STD 810G.
    10. Environmental Sealing: Water and dustproof to IP67 and US MIL STD 810G standards.
    11. Single and Twin Crystal Probes: Supports both probe types.
    12. Upgrade Option: Can be upgraded to 4+ or 6+ models at an additional cost.

    Specs

    Measuring Modes Multiple-Echo using 3 echoes to ignore coatings up to 20 mm (0.8 inch) thick
    Echo-Echo using 2 echoes to ignore coatings up to 0.04 inch (1 mm) thick
    Single-Echo using 1 echo
    Materials Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s)
    Accuracy ±0.002 inch (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on
    ±0.004 inch (±0.1 mm) or 0.1% of thickness measurement whichever is the greatest – in Single-Echo & Echo-Echo measurement modes, when calibrated and measuring the same material as calibrated on
    Resolution Multiple-Echo mode – 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm)
    Single-Echo and Echo-Echo modes – 0.005 inch (0.01 mm) or 0.001 inch (0.01 mm)
    Transducer Options Single crystal transducers and Twin crystal transducers
    Measurement Range in Steel 0.031 – 10 inch (0.8 – 250 mm) depending on selected transducer and configuration, material and temperature
    Connector 2 x Lemo 00
    Power 3 x AA / R6 batteries
    Battery Life Approx. 10 hours continuous measurement
    Electronics Dual channel pulser
    Display End-mounted rotatable LCD: 25.58 x 6.38 mm (for measurements)
    2.4 inch QVGA LCD: 47 x 37 mm (for gage setup only)
    Size 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm)
    Weight 10.5 oz (300 g) (inc. batteries)
    Operating Temp. 14°F to 122°F (-10°C to 50°C)
    Environmental Rating IP67
    MIL STD 810G Method 501.6 (high temp 131°F (+55°C))
    MIL STD 810G Method 502.6 (low temp -4°F (-20°C))
    MIL STD 810G Method 507.6 (humidity 95%)
    MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins)
    Shock and Impact MIL STD 810G Method 514.7 (vibration)
    MIL STD 810G Method 516.7 (shock 20g)
    MIL STD 810G Method 516.7 (transit drop 1.22 m)
    Standards Designed for EN 15317
    Compliance CE, UKCA, RoHS
    Warranty 3 years on gage and 6 months on transducer

    Accessories

    Basic Gage Kit

    • Cygnus 2+ gage
    • Operating manual
    • Neck strap
    • Accessory pouch, containing; 3 x AA batteries, blue couplant gel.

    Kit supplied with Single Element Transducer

    • Ultrasonic transducer
    • Moulded transducer cable
    • 15 mm (or ½ inch) steel test block
    • Spare membranes
    • Membrane key
    • Membrane couplant.

    Kit supplied with Twin Element Transducer

    • Ultrasonic transducer
    • Moulded transducer cable.

    Package Includes

    Cygnus 2+ Package Includes:

    • Ultrasonic Thickness Gauge
    • 3 x AA batteries
    • steel test block
    • ultrasonic & membrane couplant
    • accessory pouch
    • neck & wrist straps & fixings
    • mini USB to USB cable
    • manual
    • carry case
