Bruker CTX 500S Portable Countertop XRF Analyzer (CTX500S)

    Bruker CTX 500S Portable Countertop XRF Analyzer


    Quote Required Quote Required



    This product has been discontinued.


    • Product Code.:
      CTX500S
    • Tech Support Available
    • Product Weight: 18.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

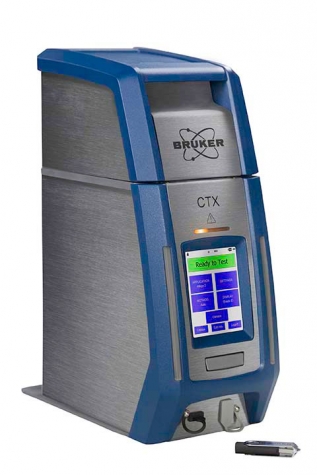

    The Bruker CTX 500S is a high-powered, countertop XRF analyzer that comes in a compact, light and portable design. The unit has a sturdy stainless steel body and is easy to clean. The CTX 500S features a minimal footprint, taking up very little space on any surface. The unit ships with a standard waterproof and pressure equilibrated Pelican case or can be transported in an optional protective backpack.

    Operation

    The CTX 500S is operated through a front panel touchscreen display or can run with a PC via Wi-Fi or USB. Readying samples for analysis is easy, and they can be placed in the safety chamber with plenty of room to spare, or in sample cups, baggies or other containers depending on your need.

    The Technology

    The CTX500S measures elements from Titanium to Uranium and uses a 50kV 2W Rhodium (Rh) thin window X-ray tube to analyze samples. The unit also features Bruker's patented SharpBeam™ optimized X-ray geometry and patented TITAN DetectorShield™ to protect against detector puncture. The CTX 500S offers Wi-Fi, Bluetooth® and USB connections. The touchscreen user-interface allows measurement control and provides an easy-to-read results display.

    The Toolbox software Bruker includes allows for full remote operation of the CTX 500S. Additional add-on software, Bruker's Artax™, is designed for advanced qualitative, semi-quantitative composition analysis, as well as EasyCal™ for your own, user-defined empirical correlations.

    Add-On Packages

    The CTX 500S features add-on calibration packages for measuring the following types of materials:

    Maritime Sulfur

    • MARPOL measurement of Sulfur in maritime Fuels 0.01-1% wt.% S, includes Spectrofilm Etnom protective film pack.
    • The unit also can come with 100 pre-made Bruker XRF sample cups in a roll with ETNOM 3μm foil; XRF safety foil for the Desktop or Benchtop stand.

    Custom Applications

    Custom calibrations for customer specific specifications can be created including calibration modifications and custom grade libraries.

    Features

    Features of CTX 500S:

    • Adjustable automated X-ray voltage and current for measurement optimization
    • Patented SharpBeam™ geometry for best performance at low power
    • Patented DetectorShield™ for long-term performance and minimal service
    • Consistent sample presentation with index markings for better precision
    • Protected against detector puncture with the patented TITAN Detector Shield (TDS)
    • Capable of detecting elemental range Ti - U.
    • Specially designed with optional calibrations for measurement of sulfur in maritime fuels.
    • Light weight, 7.1 kg (15.6 lb.)
    • Interlocked and completely sealed sample compartment with no leakage radiation.
    • Patented SharpBeam™ optical beam path for best performance and precise beam spot
    • Industrial grade stainless steel construction
    • Embedded touch screen with easy to use interface
    • Bluetooth™, USB and Wi-Fi connectivity (where allowed by local regulations)
    • Powered by Lithium-Ion battery or via 110/220V AC adapter

    Videos

    Specs

      CTX
    Model 800
     CTX
    Model 600
     CTX
    Model 500s
    CTX
    Model 500
    CTX
    Model 300
    Dimensions   13.5 cm x 25 cm x 35 cm (5.3 in x 9.8 in x 13.8 in) W x D x H
    Weight  7.1 kg (15.6 lbs) with battery
    Power Rechargeable Smart Lithium Ion Battery Pack — 7.2V, 6.8Ah, 49Wh; AC adapter 100-240V, 1A, 50-60Hz
    Excitation source Rh target X-ray tube;
    4W max output;
    6-50kV, 5-200μA
    Swiss- limited to
    5 - 100μA
    Rh target X-ray tube;
    2W max output,
    15-50kV, max 100μA

    Rh target X-ray tube;
    2W max output,
    40kV, fixed current

    Rh target X-ray tube;
    2W max output,
    15-50kV, 5-100μA
    Elemental range Mg - U   Ti - U Cl - U
    Collimation 5 mm standard;
    8 or 3 mm optional
    5mm
    Filters Five (5) position
    automatic filter
    changer with preinstalled
    filters
    Five (5) position
    automatic filter
    changer with preinstalled
    filters
    No filter Optimized fixed filter Five (5) position
    automatic filter
    changer with preinstalled
    filters
    Detector Large area silicon drift detector (SDD) with< 145 eV resolution @ 250,000 cps Mn Kα;TITAN Detector Shield   SDD detector with <179 eV resolution;TITAN Detector Shield   Si-PIN detector with
    <195 eV resolution;
    TITAN Detector Shield
    Geometry Features patented SharpBeam™ beam path for best performance at low power
    Sample chamber 12 cm x 13.5 cm x 8.5 cm (4.7 in x 5.3 in x 3.3 in) W x D x H
    Sample camera Optional   Not Available  Optional
    Touchscreen display 9.4 cm (3.7 in) high contrast industrial touchscreen LCD
    System safety Password protection, lid safety interlock, X-ray warning lights
    Control software Full control OS on analyzer and on PC software (Windows® operating system)
    Analysis software Live spectra on analyzer; live spectra and full qualitative, semi-quantitative and quantitative software on PC(Artax™ and EasyCal™ software optional)
    Data storage & transfer Internal and USB data storage, USB port for data transfer, Wi-Fi and Bluetooth connectivity
    Languages Chinese, Chinese simplified, Dutch, English, French, French Canadian, German, Indonesian, Italian, Japanese, Korean,Polish, PortugeseBR, Russian, SpanishMEX, SpanishSPN, Thai, Turkish
    Operating range  -10°C to +40°C (+14°F to 104°F); IP54 dust and splash resistant
    Certification CE

    Package Includes

    • Portable CTX 500S Countertop XRF analyzer, 50kV 2 Watt Rhodium(Rh) thin window X-ray tube
    • Li-Ion battery with smart charger
    • USB stick for data storage and easy reporting
    • Bruker Instrument Toolbox software package for reporting, spectral analysis and remote control.
    • Extensive manuals and safety video
    • Waterproof and pressure equilibrated PELICAN™ transport case
    • 2 yr. warranty (extendable to 5 year total protection)
