FlawTech Standard Composite Examination Kit (CK-1)

    FlawTech Standard Composite Examination Kit
    Starting at:

    $5,150.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • NEW Product
    • Product Code.:
      CK-1
    • Tech Support Available
    • Product Weight: 27.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

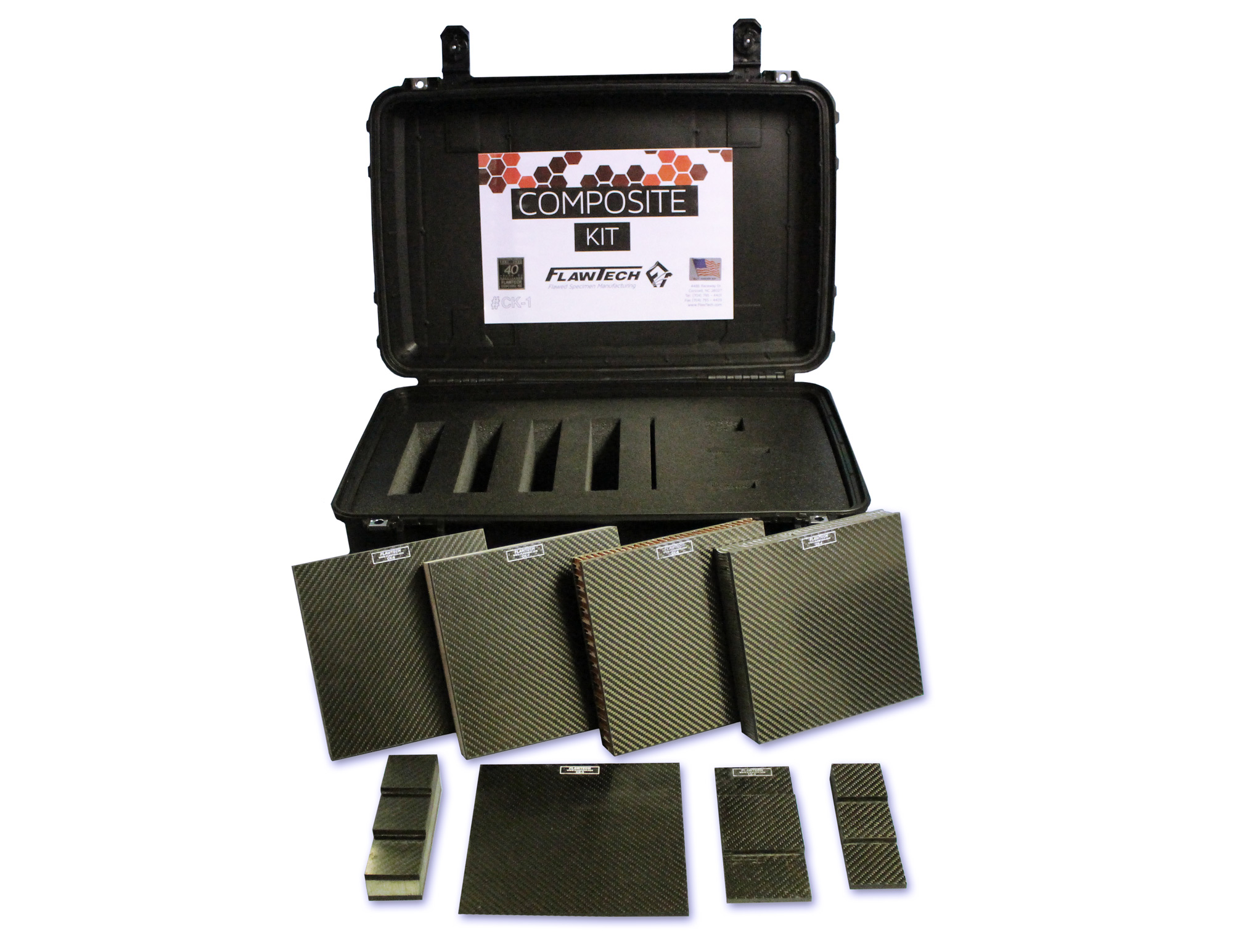

    The Composite Training and Testing Flawed Specimen Kit is the ideal tool for introducing composites, featuring various carbon fiber thicknesses, core types, and common manufacturing flaws. Developed with input from industry experts and refined through beta testing, this kit is a first for the industry.

    It offers a broad range of composite scenarios, with 8 specimens, each containing 1-3 flaws, including wrinkles, voids, foreign materials, delaminations, and dis-bonds. The carbon fiber laminate thicknesses range from 0.25" to 0.75", while core thicknesses range from 0.75" to 1.00". Core materials include aluminum honeycomb, cardboard honeycomb, foam, and balsa. The kit also includes a full document package.

    Material:
    • Carbon Fiber

    Kit Specifications:
    • Specimens will be identified with a serial number
    • Flaws: 1-3 randomly placed flaws per specimen, for a total of 15 flaws
    • Flaws will consist of Wrinkles, Voids, Foreign Material – Plastic, Foreign Material – Paper,  Delamination’s, and Dis-bonds.

    Final Documentation:
    • Certificate of Conformance, “As Built” CAD drawings and Test Sheets

    Additional Info

    Product Catalog

    Package Includes

    Total of 8 Specimens

    • (1) CK-1:  3-Step Step Block (0.25”, 0.50” & 0.75” Steps) Step 1- Wrinkle; Step 2 – Void; Step 3 – Foreign Material
    • (1) CK-2:   3-Step Cored Step Block (1.25”, 1.50” & 1.75” Steps) Step 2- Delamination
    • (1) CK-3:  0.25” T x 8” x 8” Solid Carbon Fiber Laminate Grid Plate
    • (1) CK-4:  1.5” T x 8” x 8” Carbon Fiber- Aluminum Honeycomb Core Grid Plate
    • (1) CK-5:  1.5” T x 8” x 8” Carbon Fiber- Cardboard Honeycomb Core Grid Plate
    • (1) CK-6:  1.5” T x 8” x 8” Carbon Fiber- Foam Core Grid Plate
    • (1) CK-7:  1.5” T x 8” x 8” Carbon Fiber- Balsa Wood Core Grid Plate
    • (1) CK-8:  0.25” T x 3” x 7” Solid Carbon Fiber Laminate Lap Joint Plate
