GAL Hi-Lo Welding Gauge (CAT-1)

    GAL Hi-Lo Welding Gauge
    Starting at:

    $140.00 1. Quote Required



    This product has been discontinued.

    ADD TO CART

    Share this product
    • Product Codes:
      CAT-1
    • Original Code:
      CAT-1
    • Tech Support Available
    • Product Weight: 2.00
    HAVE A QUESTION?
      Call:   1-847-577-3980
      Send an Email
       Hours:   8:00 am to 4:30 pm CST

    Description

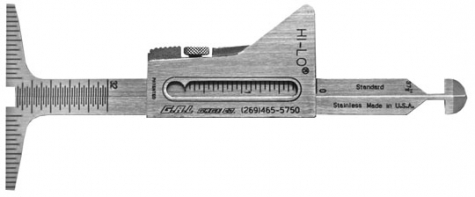

    The GAL Hi-Lo Welding Gauge features a slim, lightweight design and is ideal for measuring internal alignment after pipe fit-up. This stainless steel Hi-Lo Gauge also measures internal misalignment of the pipe before and after tracking. Radiographic rejects are cut.

    The Hi-Lo Welding Gauge also measures material thickness after fit-up, fit-up gap, fillet weld leg length, butt weld reinforcement, and 37 1/2° bevel ange verification. The GAL Hi-Lo Welding Gauge has Imperial and Metric units.

    Features

    • New slim, 30% lighter design
    • Convenient locking screw

    Videos

    Specs

    Measurement Scale Inch and Metric
    Material Stainless Steel

    Additional Info

    Brochure
