FlawTech Bubble Leak Kit (BLK-1)

    FlawTech Bubble Leak Kit
    Starting at:

    $6,520.00 1. Quote Required



    This product has been discontinued.


    • NEW Product
    • Product Codes:
      BLK-1
    • Tech Support Available
    • Product Weight: 60.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description



    The Bubble Leak Kit includes a 6” x 12” Vacuum Box with a 4” x 10” viewing window. Designed for use on flat surfaces, the Vacuum Box features a 1” thick foam gasket, a vacuum gauge with a maximum of 30 in Hg, a venturi with a muffler, and a standard ¼” male quick disconnect air fitting.

    Please note the Kit does not include air hose or air compressor, however these items can be included as an option.
    FlawTech can manufacture custom vacuum boxes for most any geometry.

    Flaw types include: Pin Holes, Toe Cracks, HAZ Cracks, Base Metal Cracks, Corrosion w/ Pin Holes

    Additional Info

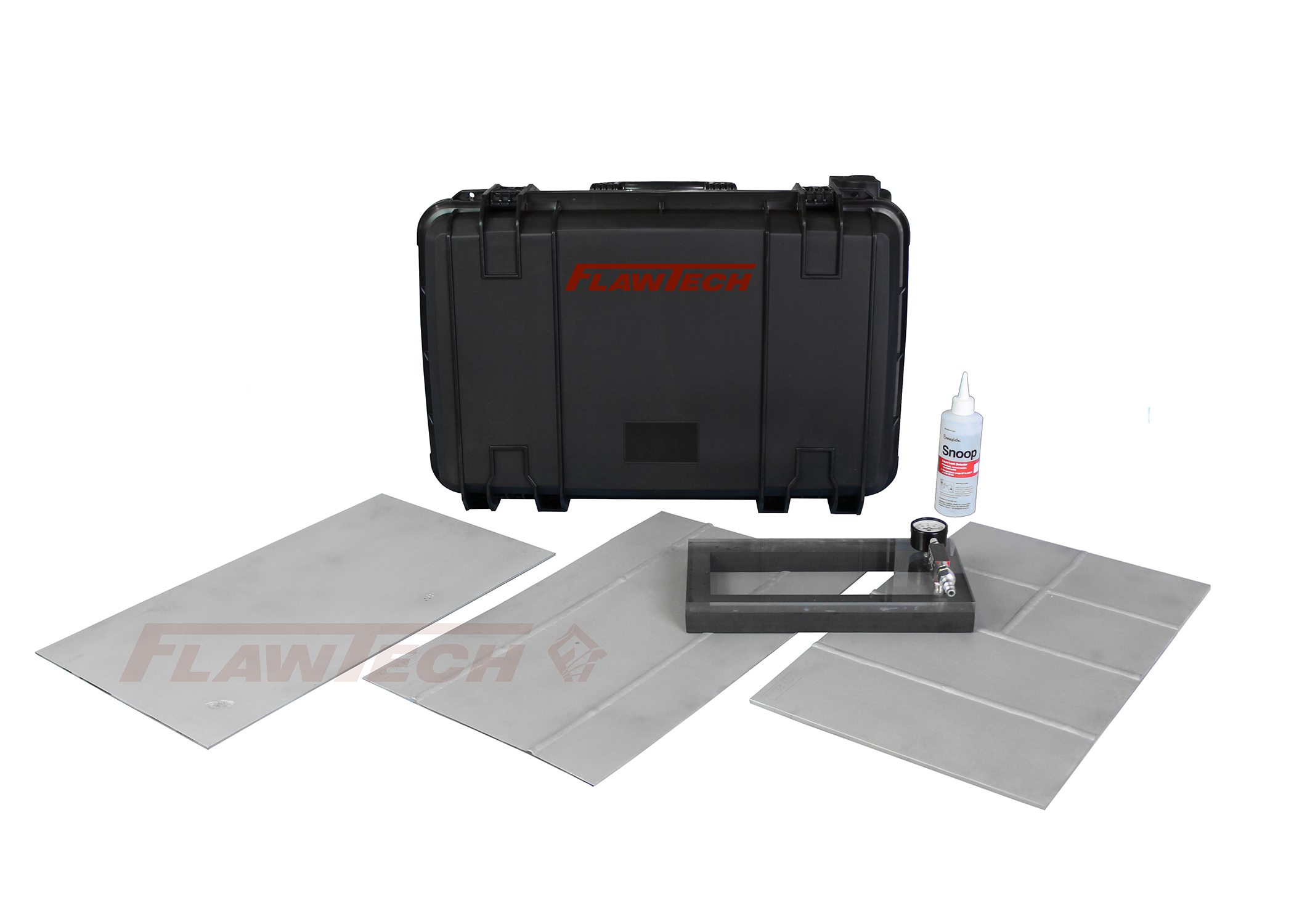

    Package Includes

    • (2), 12” x 20” x 0.125” T stainless steel plates
    • (1), 12” x 20” x 0.250” T stainless steel plate
    • Each plate will contain 4 to 6 flaws for a total of 15 flaws
    • (1) plate will have two 20” welds
    • (1) plate will have four ~12” welds
    • (1) plate will have no welds
    • Bubble leak solution
    • Documentation Package
    • Carrying Case
