Spectroline BIB-150P Self-Ballasted UV-A Lamp 120V/60hz with Broad Beam Spot Bulb (BIB-150PBROAD)

    Spectroline BIB-150P Self-Ballasted UV-A Lamp 120V/60hz with Broad Beam Spot Bulb




    DISCONTINUED

    This product has been discontinued.


    • Product Codes:
      BIB-150PBROAD
    • Original Code:
      BIB-150PBROAD
    • Tech Support Available
    • Product Weight: 5.00

    HAVE A QUESTION?
       Hours:   8:00 am to 4:30 pm CST

    Description

    World’s Highest Intensity, Self-Ballasted UV-A Lamp

    This lamp is a favorite with NDT inspectors because it provides super-high UV-A intensity at an economical price. Its light weight and ergonomic design ensure easy handling for long inspections.

    Precision engineered to produce super-high ultraviolet intensity and performance at an economical price. Improved, crack-resistant filter minimizes visible light (less than 2 foot-candles or 20 lux) while maximizing long wave UV irradiance. The BIB-150P easily meets MIL and ASTM specs for FPI and MPI.

    Unique engineering polymer housing makes this lamp extremely impact-resistant and dent-proof.

    150-watt Built-In-Ballast™ bulb requires no heavy external transformer. As a result, the bulk and weight are gone, yet all the power of a transformer-based unit remains.

    Lightweight and ergonomically designed — The hand-held BIB-150P lamp has a total weight of only 3¼ pounds (1.5kg). The lamp head, including the heat guard/stand, measures 9 5/8 inches (24cm) long. The power cord exits directly from the bottom of the contoured pistol-grip handle, resulting in better balance.

    Unsurpassed safety and convenience — The vinyl-coated, stainless-steel, wraparound heat guard/stand protects against burns and acts as a lamp stand. Its special insulators absorb mechanical shock to extend bulb and filter life. The 3-wire power cord, made of heat-resistant material, reduces the risk of shock hazard. Because there’s no bulky transformer to drag around and it has an 8-foot (2.5m) power cord, you can use it anywhere.

    Special Bulb-Saver™ extends bulb life. To greatly reduce replacement costs due to broken bulbs, we include our unique Bulb-Saver at no extra charge. It minimizes bulb movement during handling, reducing the risk of breakage.

    Flexible, silicone rubber filter holder is easily removable without tools for bulb or filter replacement.

    FREE UV-absorbing glasses included with every lamp.

    Includes:

    BIB150P 365nm, Self-Ballasted, 150 Watt Broad-Beam Spot  Bulb with HGS-150A Heat Guard/Stand, 2F958 Filter, UVS-30 UVAbsorbing Spectacles and 8 Foot Cord (120V/60Hz)



    Features

    • Unique Built-In-Ballast™ 150-watt bulb eliminates the need for a heavy, external transformer
    • Space-age engineering polymer housing is impact-resistant and dent-proof
    • Total weight of only 31/4 lbs (1.5 kg). Measures just 95/8 inches (24 cm) long, including the heat guard/stand
    • Vinyl-coated, stainless-steel, wraparound caging protects against burns and acts as a lamp stand
    • Special Bulb-Saver™ minimizes bulb movement during handling and reduces the risk of breakage
    • Easily meets ASTM UV-A intensity specifications for FPI and MPI

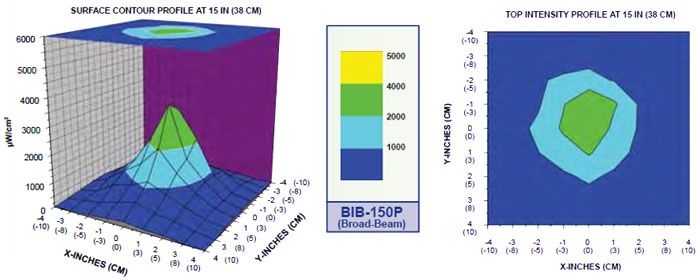

    • Broad-beam configuration has a nominal steady-state UV-A intensity of 3,000 µW/cm2 at 15 inches (38 cm)
