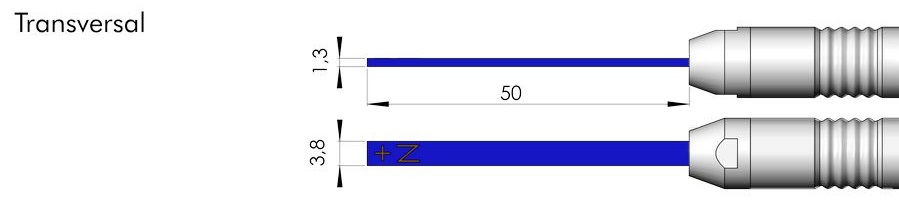

MAGSYS Standard Transversal Probe for HGM09s

An axial probe and a thin transversal probe for the measurement inside small gaps are also available. All probes are equipped with internal memory for identification, parametrization and linearization.

The measuring range is up to 4.5 Tesla for the flux density and 3800 kA/m for the field strength respectively. The resolution is down to 1 µT or 1 A/m.

Additional features

• Peak hold (positive and negative)
• Linearity adjustment
• Null balance
• Battery condition indicator with energy-saving mode

The measuring values can easily be visualized and stored on the PC by pressing a key via the USB interface and a software package. Service and control functions are also available with the software.

MAGSYS HGM09 Standard Transversal Probe Only (Package Includes):

• Standard Transversal Probe (1)
• Probe Protector Case (1)
