Name: Berg Digital Vernier Crack / Pit Depth Gauge
Brand: Berg Engineering
SKU: Digital-Vernier-Crack-Pit-Depth-Gauge
Availability: InStock

Berg Digital Vernier Crack / Pit Depth Gauge

SKU: BE-CPG-IP54V2

$0.00

Description

This gauge is especially designed based on vernier sliding to measure the depth of pits, cracks, craters of the outer surface (sometimes the inside surface) of steel structures, pipes and concretes for quick and accurate assessment of surface conditions.

Features:

Made in hardened stainless steel for stable structure and higher accuracy.
The probing tip tapered to 0.1mm in diameter is able to measure the depth of even the smallest pits or cracks, etc..
Equipped with 60mm and 125mm exchangeable bases
IP54 Protection

Additional Info

Data Sheet

Instructions

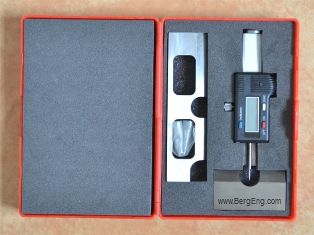

Package Includes

Specifications

Technical Data

Model Code	BE-CPG-IP54V2
Base mm in length	60mm and 125mm
IP54 Protection	Included
Resolution (mm/in.)	0.01/0.001
Range (mm/in.)	0~30/1.2
Permissible Error (mm/in.)	±0.01/±0.001
Probe Diameter (mm)	0.1
MM/IN. Conversion	YES
ON/OFF Function	YES
�0"e; Setting at any position	YES
Measuring Speed	≤1.5m/sec
Working Temperature	0~40℃
Relative Humidity	≤80%
Storage Temperature	-20~+70℃
Accessories	Two Screws and Button Battery 1.55V

Product code: BE-CPG-IP54V2
Original Code: BE-CPG-IP54V2
Original Code 2
NSN

Product weight: 2.00

Product Heading content

Technical Data

Model Code	BE-CPG-IP54V2
Base mm in length	60mm and 125mm
IP54 Protection	Included
Resolution (mm/in.)	0.01/0.001
Range (mm/in.)	0~30/1.2
Permissible Error (mm/in.)	±0.01/±0.001
Probe Diameter (mm)	0.1
MM/IN. Conversion	YES
ON/OFF Function	YES
“0” Setting at any position	YES
Measuring Speed	≤1.5m/sec
Working Temperature	0~40℃
Relative Humidity	≤80%
Storage Temperature	-20~+70℃
Accessories	Two Screws and Button Battery 1.55V
